SKU: ESFAE205-SNR

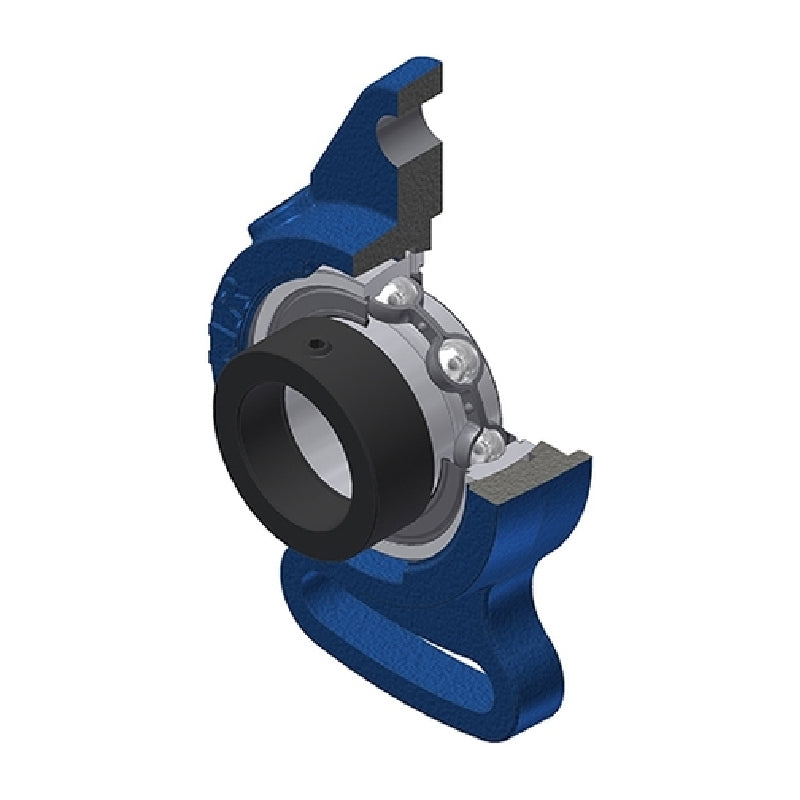

SNR ESFAE205 Metric Cast Iron Adjustable Flange Unit with Eccentric Collar Insert 25mm Bore - Allow 2-3 Days
SNR ESFAE205 Metric Cast Iron Adjustable Flange Unit with Eccentric Collar Insert 25mm Bore - Allow 2-3 Days
Regular price
$35.31
ex VAT
Regular price
Sale price
$35.31
ex VAT
In stock
Price Break
3+
$26.30
4+
$25.24
9+
$24.71
19+
$23.91
49+
$23.38
99+
$22.05
499+
$18.60
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
ESFAE200 Series Cast Iron Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25mm
- Style:
- ESFAE
- Bolt Hole Centres:
- 99mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 25mm |
| A | 22.5mm |
| A1 | 11mm |
| A2 | 35.9mm |
| A3 | 3.5mm |
| B | 21.4mm |
| B1 | 30.9mm |
| d1 | 37.4mm |
| e | 12.5mm |
| H | 124mm |
| H3 | 63.5mm |
| J | 99mm |
| J1 | 37.5mm |
| L | 70mm |
| L1 | 63mm |
| N | 11.5mm |
| S | 7.5mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.59 kg |
