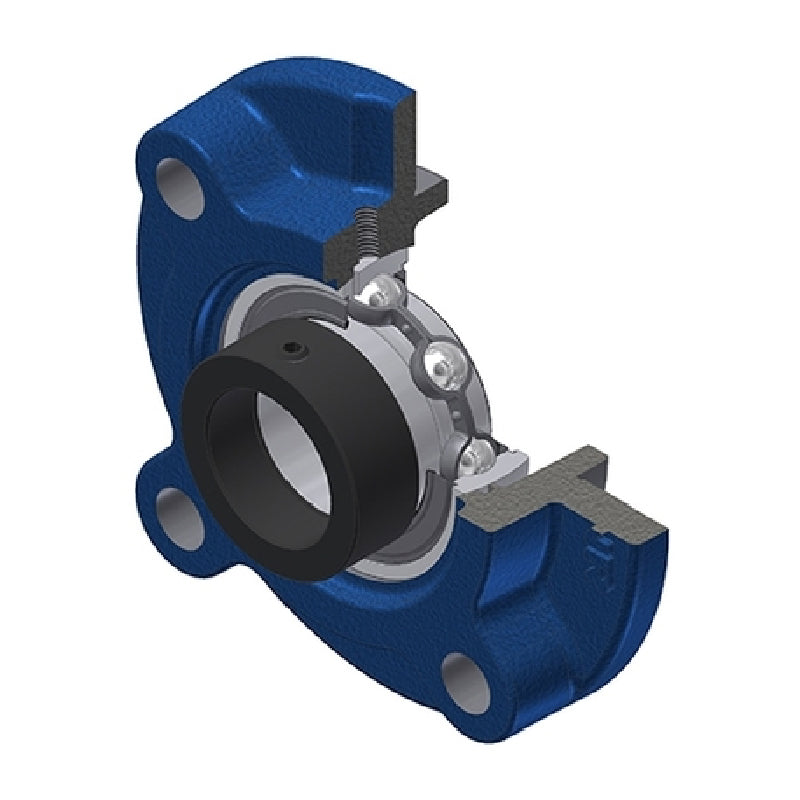

SNR ESFC208 Metric Four Bolt Cast Iron Round Flanged Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
SNR ESFC208 Metric Four Bolt Cast Iron Round Flanged Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
$58.91
ex VAT
Regular price
Sale price
$58.91
ex VAT
In stock
Price Break
3+
$39.46
4+
$37.25
9+
$36.80
19+
$36.36
49+
$35.91
99+
$35.47
499+
$33.25
999+
$32.81
1999+
$32.37
2999+
$31.92
4999+
$31.04
Quantity
Couldn't load pickup availability
Share this product
Description
Description
ESFC200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- ESFC
- Pitch Circle Diameter:
- 120mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 40mm |
| A | 36mm |
| A1 | 9mm |
| A2 | 43.7mm |
| A4 | 26mm |
| B | 30.2mm |
| B1 | 43.7mm |
| d1 | 58mm |
| e | 11mm |
| H3 | 100mm |
| J | 120mm |
| L | 145mm |
| N | 14mm |
| S | 11mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 2 kg |
