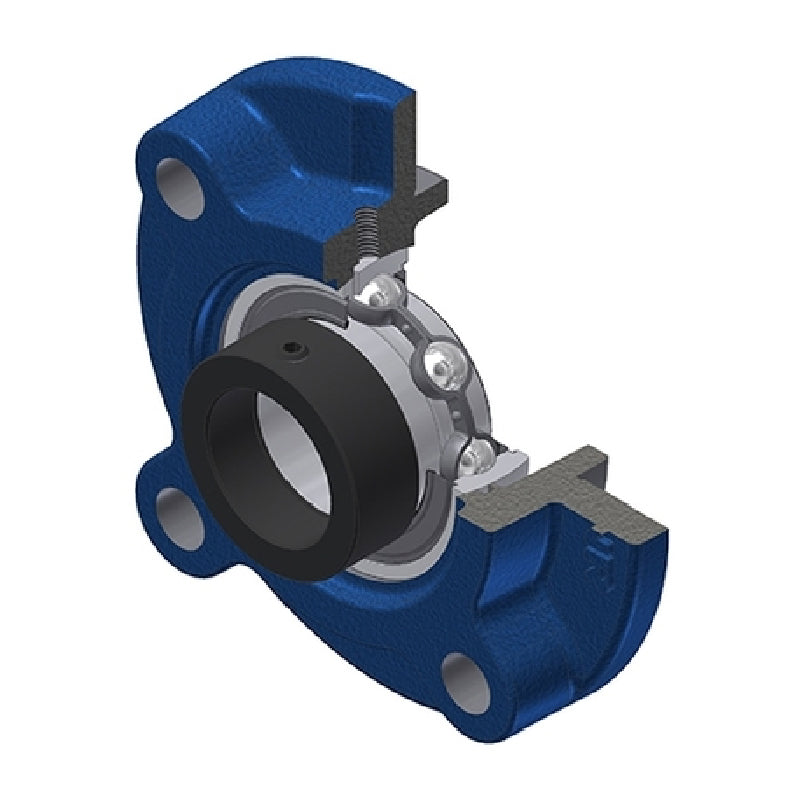

• SNR ESFC211 Metric Four Bolt Cast Iron Round Flanged Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days
  • SNR
1 2

SKU: ESFC211-SNR

SNR ESFC211 Metric Four Bolt Cast Iron Round Flanged Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days

SNR ESFC211 Metric Four Bolt Cast Iron Round Flanged Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days
$75.14 ex VAT
$75.14 ex VAT
Sale Sold out

In stock

Price Break
3+ $50.33
4+ $47.50
9+ $46.94
19+ $46.37
49+ $45.80
99+ $45.24
499+ $42.41
999+ $41.85
1999+ $41.28
2999+ $40.72
4999+ $39.58

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
55mm
Style:
ESFC
Pitch Circle Diameter:
150mm
Technical
--- Dimensions
Shaft diameter d 55mm
A 42mm
A1 13mm
A2 49.4mm
A4 30mm
B 32.5mm
B1 48.4mm
d1 74.5mm
e 13mm
H3 125mm
J 150mm
L 185mm
N 19mm
S 12mm
G M6x1
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 3.58 kg
