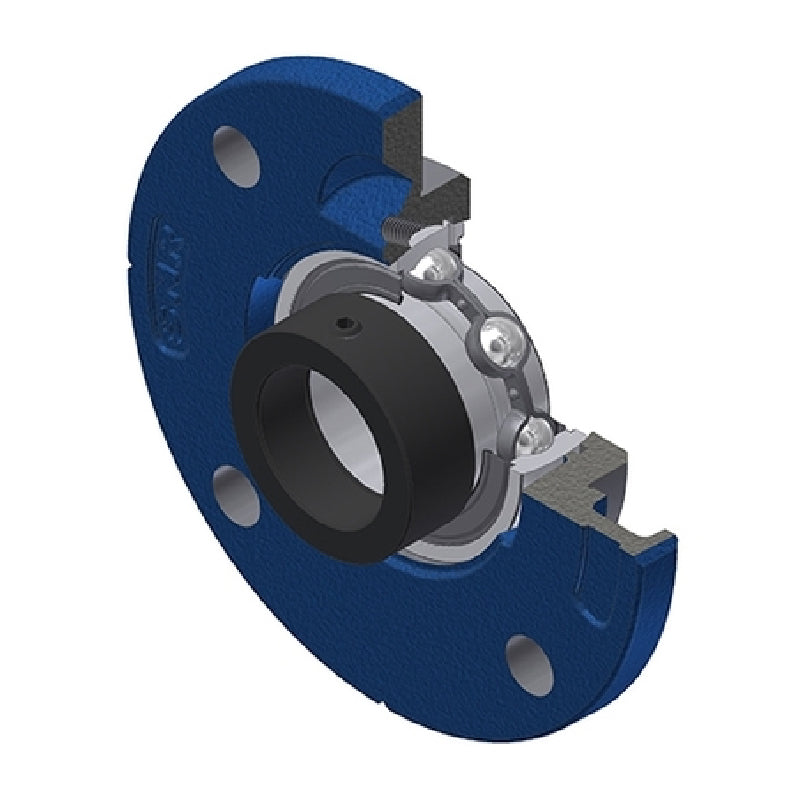

• SNR ESFCE204 Metric Four Bolt Cast Iron Round Flanged Housing with 20mm Eccentric Collar Insert - Allow 2-3 Days
  • SNR
1 2

SKU: ESFCE204-SNR

SNR ESFCE204 Metric Four Bolt Cast Iron Round Flanged Housing with 20mm Eccentric Collar Insert - Allow 2-3 Days

SNR ESFCE204 Metric Four Bolt Cast Iron Round Flanged Housing with 20mm Eccentric Collar Insert - Allow 2-3 Days
$31.30 ex VAT
$31.30 ex VAT
Sale Sold out

In stock

Price Break
3+ $20.97
4+ $19.79
9+ $19.56
19+ $19.32
49+ $19.09
99+ $18.85
499+ $17.67
999+ $17.44
1999+ $17.20
2999+ $16.96
4999+ $16.49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
20mm
Style:
ESFCE
Pitch Circle Diameter:
78mm
Technical
--- Dimensions
Shaft diameter 20mm
A 18mm
A1 8mm
A2 21.4mm
A3 2mm
B 21.4mm
B1 30.9mm
d1 32.4mm
e -2mm
H3 62mm
J 78mm
L 100mm
N 9mm
S 7.5mm
G M6x1
--- Load rating
Dynamic load C 12.8 kN
Static load C0 6.65 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.52 kg
