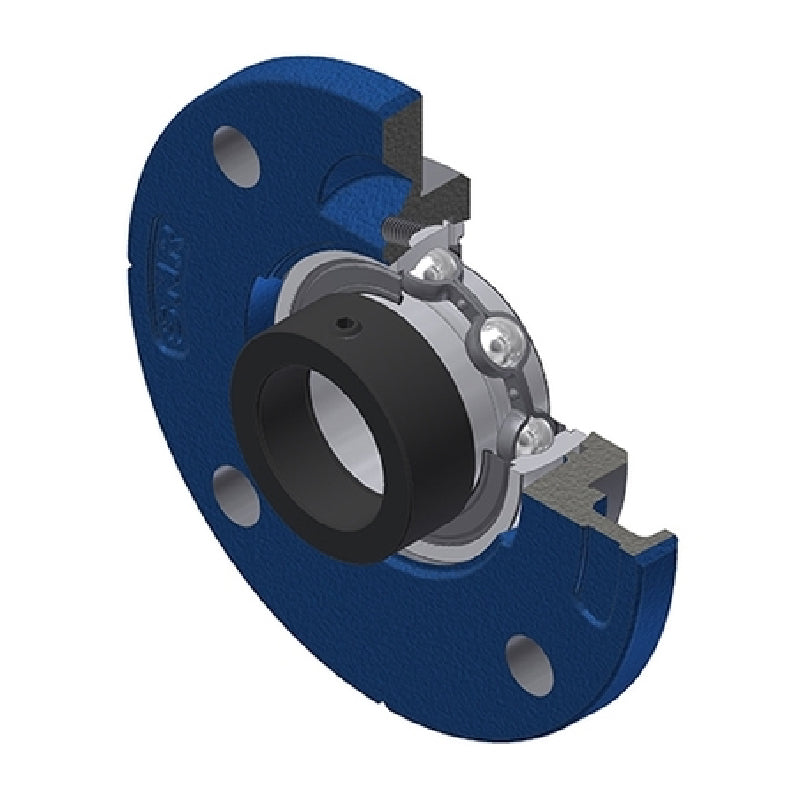

SNR ESFCE205 Metric Four Bolt Cast Iron Round Flanged Housing with 25mm Eccentric Collar Insert
SNR ESFCE205 Metric Four Bolt Cast Iron Round Flanged Housing with 25mm Eccentric Collar Insert
Regular price
$34.15
ex VAT
Regular price
Sale price
$34.15
ex VAT
In stock
Price Break
3+
$22.88
4+
$21.59
9+
$21.33
19+
$21.08
49+
$20.82
99+
$20.56
499+
$19.28
999+
$19.02
1999+
$18.76
2999+
$18.51
4999+
$17.99
Quantity
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25mm
- Style:
- ESFCE
- Pitch Circle Diameter:
- 90mm
Technical
Technical

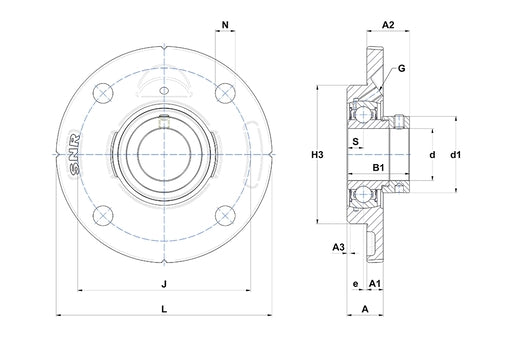

| --- | Dimensions |
|---|---|
| Shaft diameter | 25mm |
| A | 20mm |
| A1 | 9mm |
| A2 | 20.9mm |
| A3 | 2mm |
| B | 21.4mm |
| B1 | 30.9mm |
| d1 | 37.4mm |
| e | -2.5mm |
| H3 | 70mm |
| J | 90mm |
| L | 115mm |
| N | 9mm |
| S | 7.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.76 kg |
