• SNR ESFCE212 Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Eccentric Collar Insert - Allow 2-3 Days
  • SNR
1 2

SKU: ESFCE212-SNR

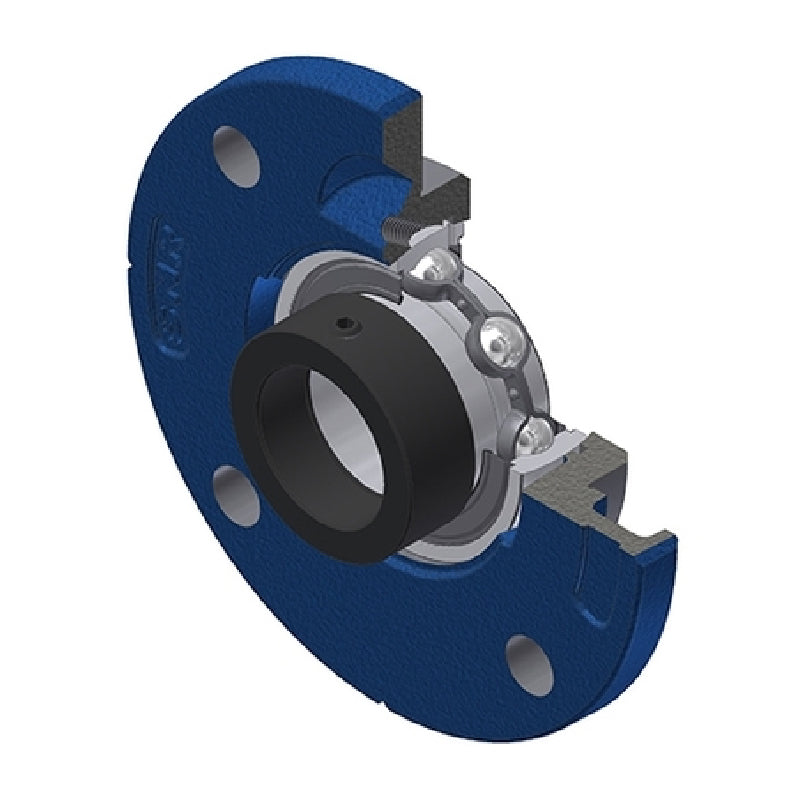

SNR ESFCE212 Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Eccentric Collar Insert - Allow 2-3 Days

SNR ESFCE212 Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Eccentric Collar Insert - Allow 2-3 Days
$97.05 ex VAT
$97.05 ex VAT
Sale Sold out

In stock

Price Break
3+ $65.01
4+ $61.36
9+ $60.63
19+ $59.89
49+ $59.16
99+ $58.43
499+ $54.78
999+ $54.05
1999+ $53.32
2999+ $52.59
4999+ $51.13

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
60mm
Style:
ESFCE
Pitch Circle Diameter:
160mm
Technical
--- Dimensions
Shaft diameter 60mm
A 30.5mm
A1 16mm
A2 36.3mm
A3 3mm
B 33.4mm
B1 49.3mm
d1 82mm
e -1mm
H3 135mm
J 160mm
L 195mm
N 18mm
S 12mm
G R1/8"
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 3.53 kg
