SKU: ESFD203-SNR

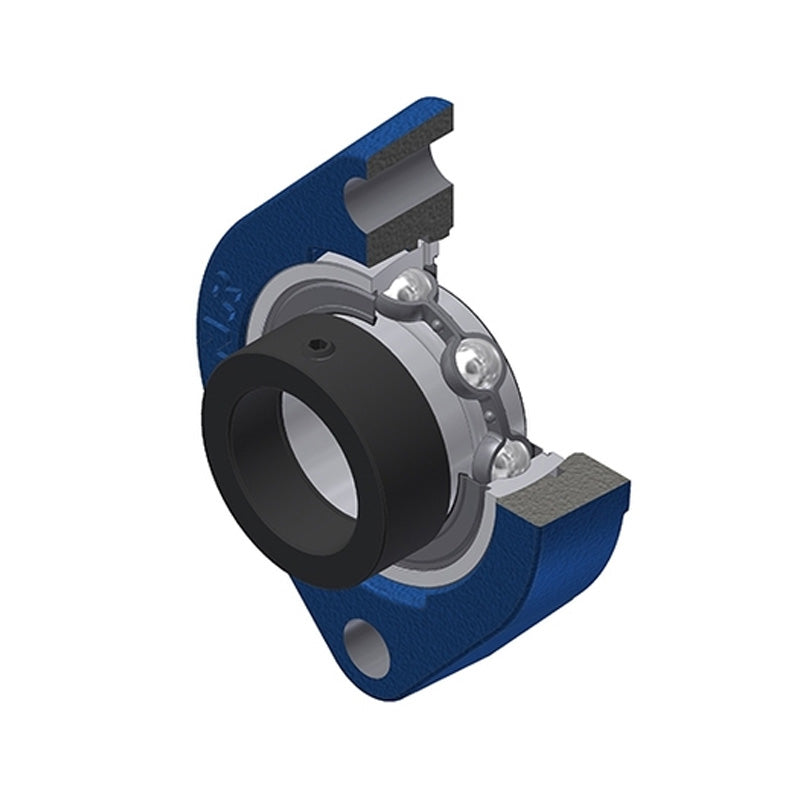

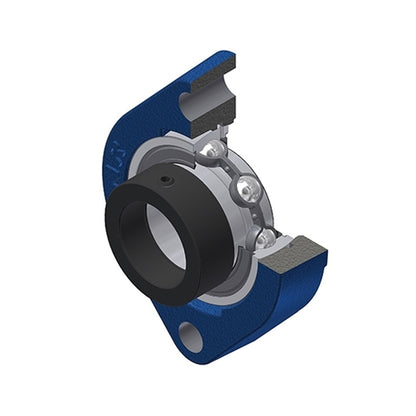

SNR ESFD203 Metric Two Bolt Cast Iron Oval Housing with 17mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR ESFD203 Metric Two Bolt Cast Iron Oval Housing with 17mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
$29.88
ex VAT
Regular price
Sale price
$29.88
ex VAT
In stock
Price Break
3+
$20.02
4+
$18.89
9+
$18.67
19+
$18.44
49+
$18.22
99+
$17.99
499+
$16.87
999+
$16.64
1999+
$16.42
2999+
$16.19
4999+
$15.74
Quantity
Couldn't load pickup availability
Share this product
Description
Description
ESFD200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 17mm
- Style:
- ESFD
- Bolt Hole Centres:
- 63.5mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 17mm |
| A | 15mm |
| A2 | 30.5mm |
| B | 19.1mm |
| e | 8.4mm |
| H | 81mm |
| J | 63.5mm |
| L | 58.7mm |
| N | 6.5mm |
| S | 6.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 9.55 kN |
| Static load C0 | 4.78 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.33 kg |
