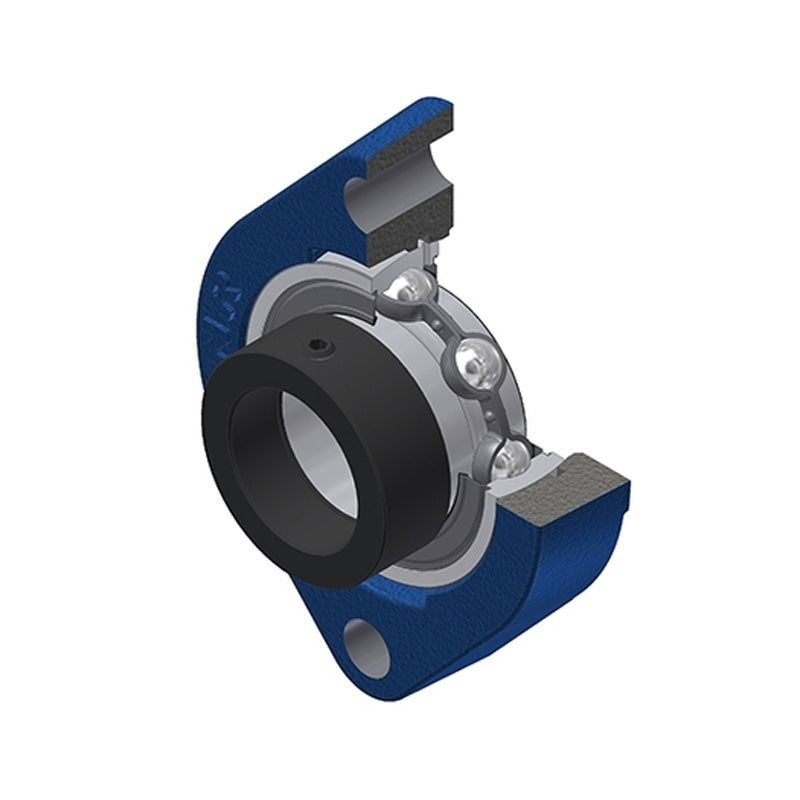

• SNR ESFD206 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert - Allow 2-3 Days
  • SNR
1 2

SKU: ESFD206-SNR

SNR ESFD206 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR ESFD206 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert - Allow 2-3 Days
$40.57 ex VAT
$40.57 ex VAT
Sale Sold out

In stock

Price Break
3+ $27.17
4+ $25.64
9+ $25.34
19+ $25.03
49+ $24.73
99+ $24.42
499+ $22.90
999+ $22.59
1999+ $22.29
2999+ $21.98
4999+ $21.37

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
30mm
Style:
ESFD
Bolt Hole Centres:
90.5mm
Technical
--- Dimensions
Shaft diameter 30mm
A 20.5mm
A2 38.1mm
B 23.8mm
e 11.4mm
H 112.5mm
J 90.5mm
L 84mm
N 11mm
S 9mm
G R1/8″
--- Load rating
Dynamic load C 19.5 kN
Static load C0 11.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 0.73 kg
