SKU: ESFL204T04-SNR

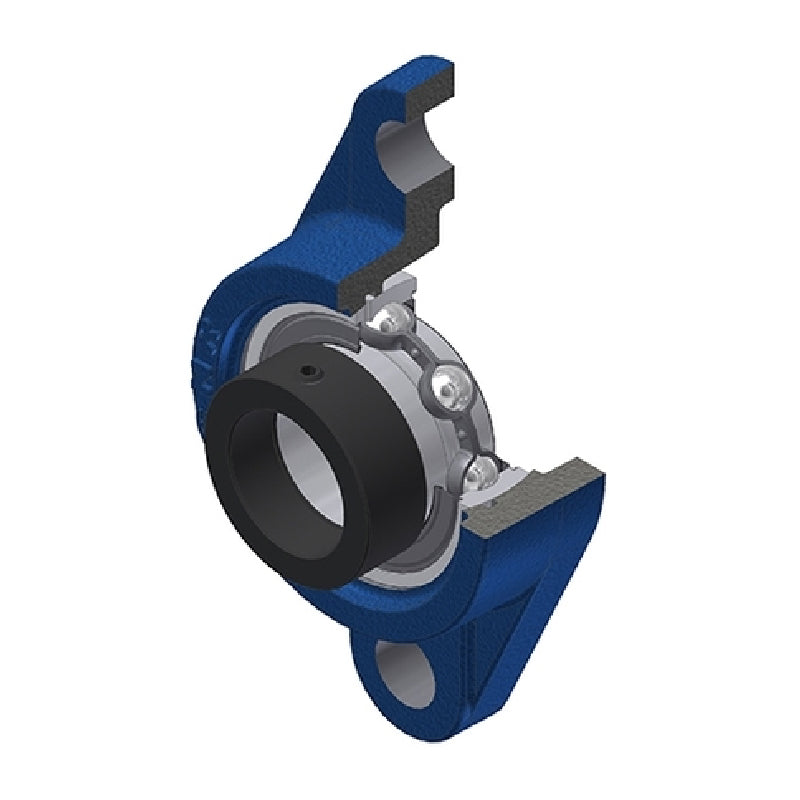

SNR ESFL204T04 Metric Two Bolt Cast Iron Oval Housing with 20mm Bore Eccentric Collar Insert Low Temperature Version - Allow 2-3 Days
SNR ESFL204T04 Metric Two Bolt Cast Iron Oval Housing with 20mm Bore Eccentric Collar Insert Low Temperature Version - Allow 2-3 Days
Regular price
$88.27
ex VAT
Regular price
Sale price
$88.27
ex VAT
In stock
Price Break
3+
$65.76
4+
$63.10
9+
$61.77
19+
$59.78
49+
$58.45
99+
$55.13
499+
$46.49
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
ESFL200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 20mm
- Style:
- ESFL
- Bolt Hole Centres:
- 90mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 20mm |
| A | 25.5mm |
| A1 | 11mm |
| A2 | 38.4mm |
| B | 21.4mm |
| B1 | 30.9mm |
| d1 | 32.4mm |
| e | 15mm |
| H | 113mm |
| J | 90mm |
| L | 60mm |
| N | 12mm |
| S | 7.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 12.8 kN |
| Static load C0 | 6.65 kN |
| --- | Unit information |
| Operating temperature min. | -40°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.41 kg |
