SKU: ESFL205COE-SNR

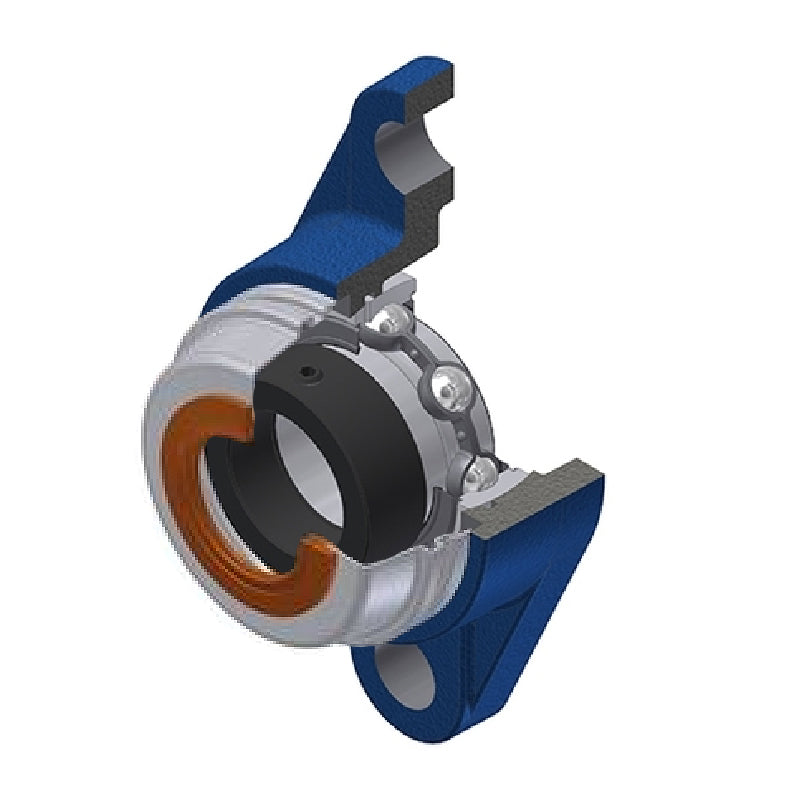

SNR ESFL205COE Metric Two Bolt Cast Iron Oval Housing with 25mm Bore Eccentric Collar Insert with Wide Steel Plate Cover - Open Version - Allow 2-3 Days

SNR ESFL205COE Metric Two Bolt Cast Iron Oval Housing with 25mm Bore Eccentric Collar Insert with Wide Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price $73.63 ex VAT
Regular price Sale price $73.63 ex VAT
Sale Sold out

In stock

Price Break
3+ $54.86
4+ $52.64
9+ $51.53
19+ $49.87
49+ $48.76
99+ $45.99
499+ $38.79
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

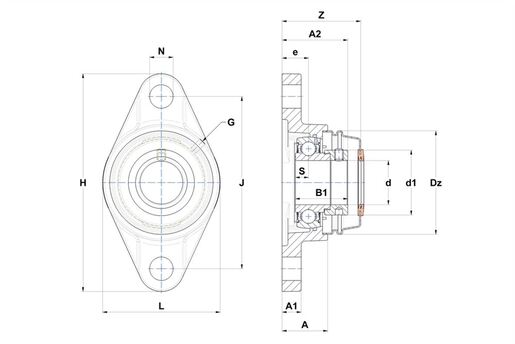

--- Dimensions
Shaft diameter d 25mm
A 27mm
A1 13mm
A2 39.4mm
B 21.4mm
B1 30.9mm
d1 37.4mm
e 16mm
H 130mm
J 99mm
L 68mm
N 16mm
S 7.5mm
Dz 60mm
Z 48.2mm
G M6x1
--- Load rating
Dynamic load C 14 kN
Static load C0 7.88 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.632 kg
