SKU: ESFL208N-SNR

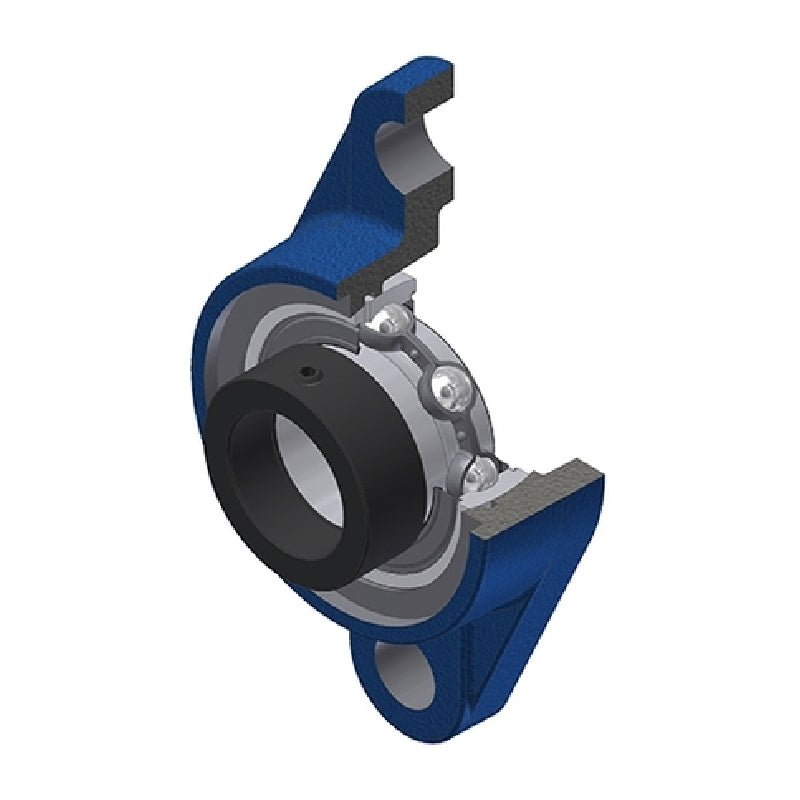

SNR ESFL208N Metric Two Bolt Cast Iron Oval Housing with 40mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR ESFL208N Metric Two Bolt Cast Iron Oval Housing with 40mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price $73.55 ex VAT
Regular price Sale price $73.55 ex VAT
Sale Sold out

In stock

Price Break
3+ $54.80
4+ $52.58
9+ $51.48
19+ $49.82
49+ $48.71
99+ $45.94
499+ $38.75
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 40mm
A 36mm
A1 14mm
A2 53.7mm
B 30.2mm
B1 43.7mm
d1 58mm
e 21mm
H 175mm
J 144mm
L 100mm
N 16mm
S 11mm
G M6x1
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.47 kg
