SKU: ESFL209COE-SNR

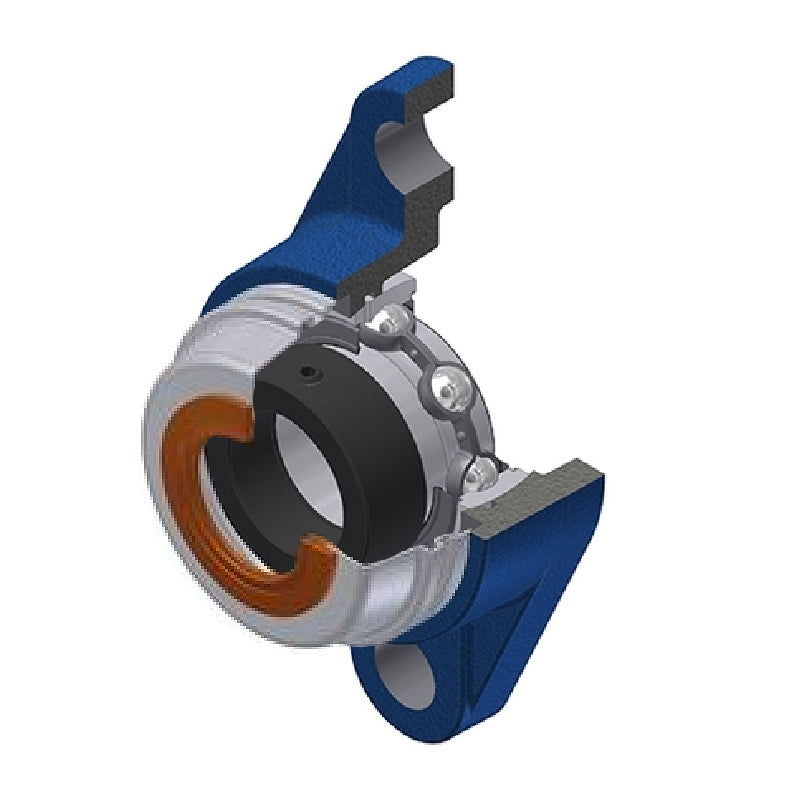

SNR ESFL209COE Metric Two Bolt Cast Iron Oval Housing with 45mm Bore Eccentric Collar Insert with Wide Steel Plate Cover - Open Version - Allow 2-3 Days
SNR ESFL209COE Metric Two Bolt Cast Iron Oval Housing with 45mm Bore Eccentric Collar Insert with Wide Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price
$103.00
ex VAT
Regular price
Sale price
$103.00
ex VAT
In stock
Price Break
3+
$76.73
4+
$73.63
9+
$72.08
19+
$69.76
49+
$68.21
99+
$64.33
499+
$54.26
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
ESFL200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- ESFL
- Bolt Hole Centres:
- 148mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 45mm |
| A | 38mm |
| A1 | 16mm |
| A2 | 54.7mm |
| B | 30.2mm |
| B1 | 43.7mm |
| d1 | 62mm |
| e | 22mm |
| H | 188mm |
| J | 148mm |
| L | 108mm |
| N | 19mm |
| S | 11mm |
| Dz | 95mm |
| Z | 64mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 31.85 kN |
| Static load C0 | 20.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.918 kg |
