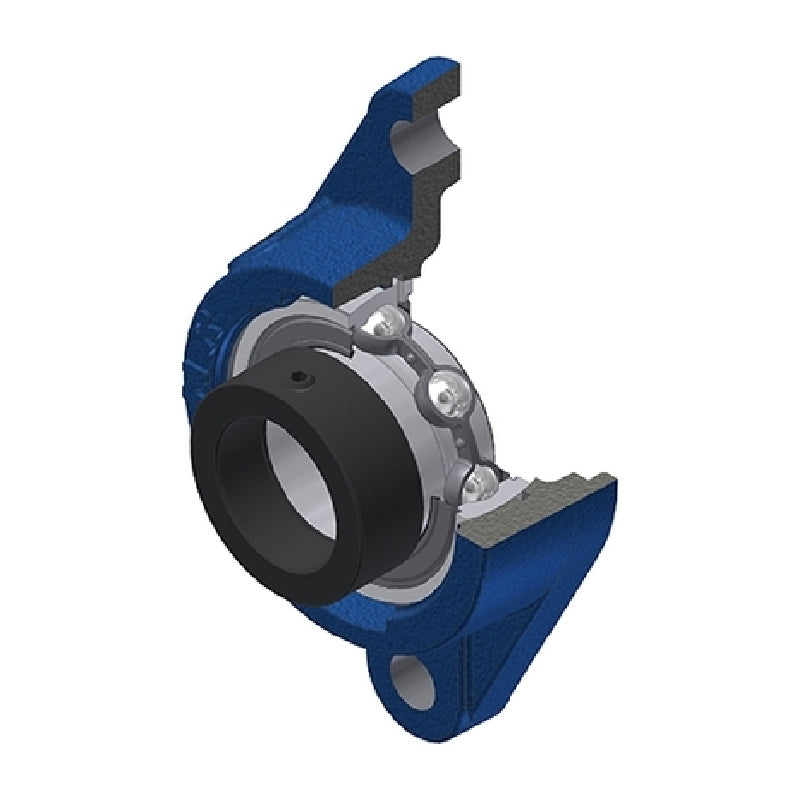

SNR ESFLE203 Metric Two Bolt Cast Iron Oval Housing with 17mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR ESFLE203 Metric Two Bolt Cast Iron Oval Housing with 17mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
$26.50
ex VAT
Regular price
Sale price
$26.50
ex VAT
In stock
Price Break
3+
$19.74
4+
$18.94
9+
$18.54
19+
$17.95
49+
$17.55
99+
$16.55
499+
$13.96
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
ESFLE200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 17mm
- Style:
- ESFLE
- Bolt Hole Centres:
- 76.5mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 17mm |
| A | 26mm |
| A1 | 9.5mm |
| A2 | 39.1mm |
| B | 19.1mm |
| B1 | 28.6mm |
| d1 | 27.2mm |
| e | 17mm |
| H | 99mm |
| J | 76.5mm |
| L | 57mm |
| N | 11.5mm |
| S | 6.5mm |
| G | M6 |
| --- | Load rating |
| Dynamic load C | 9.55 kN |
| Static load C0 | 4.78 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.39 kg |
