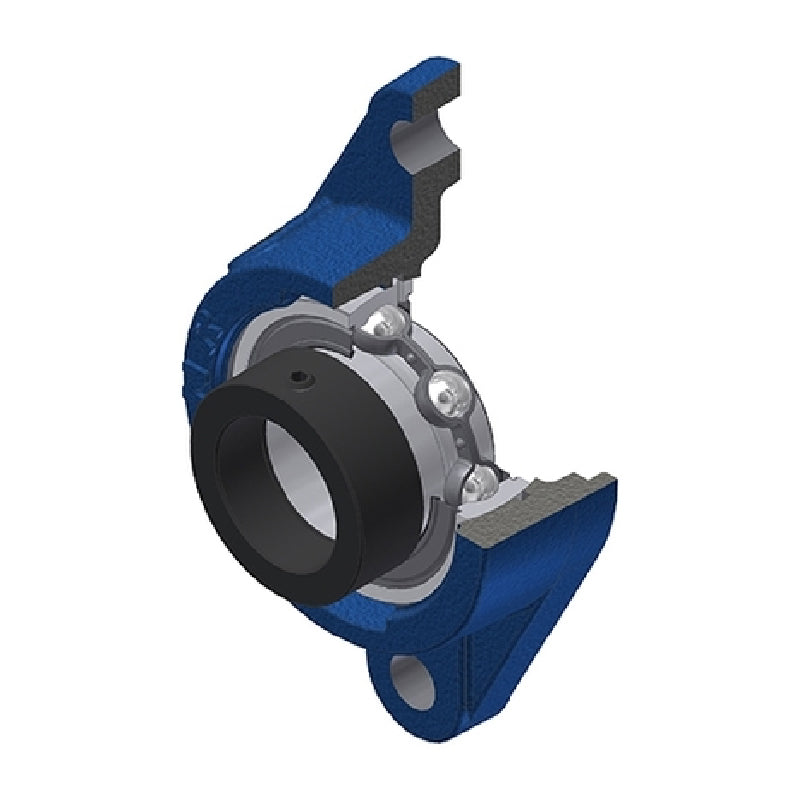

• SNR ESFLE204 Metric Two Bolt Cast Iron Oval Housing with 20mm Bore Eccentric Collar Insert - Allow 2-3 Days
  • SNR
1 2

SKU: ESFLE204-SNR

SNR ESFLE204 Metric Two Bolt Cast Iron Oval Housing with 20mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR ESFLE204 Metric Two Bolt Cast Iron Oval Housing with 20mm Bore Eccentric Collar Insert - Allow 2-3 Days
$29.46 ex VAT
$29.46 ex VAT
Sale Sold out

In stock

Price Break
3+ $19.74
4+ $18.63
9+ $18.41
19+ $18.18
49+ $17.96
99+ $17.74
499+ $16.63
999+ $16.41
1999+ $16.19
2999+ $15.97
4999+ $15.52

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
20mm
Style:
ESFLE
Bolt Hole Centres:
90mm
Technical
--- Dimensions
Shaft diameter d 20mm
A 30.3mm
A1 10mm
A2 42.4mm
B 21.4mm
B1 30.9mm
d1 32.4mm
e 19mm
H 112mm
J 90mm
L 61mm
N 11.5mm
S 7.5mm
G R1/8″
--- Load rating
Dynamic load C 12.8 kN
Static load C0 6.65 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.45 kg
