SKU: ESFLE205COE-SNR

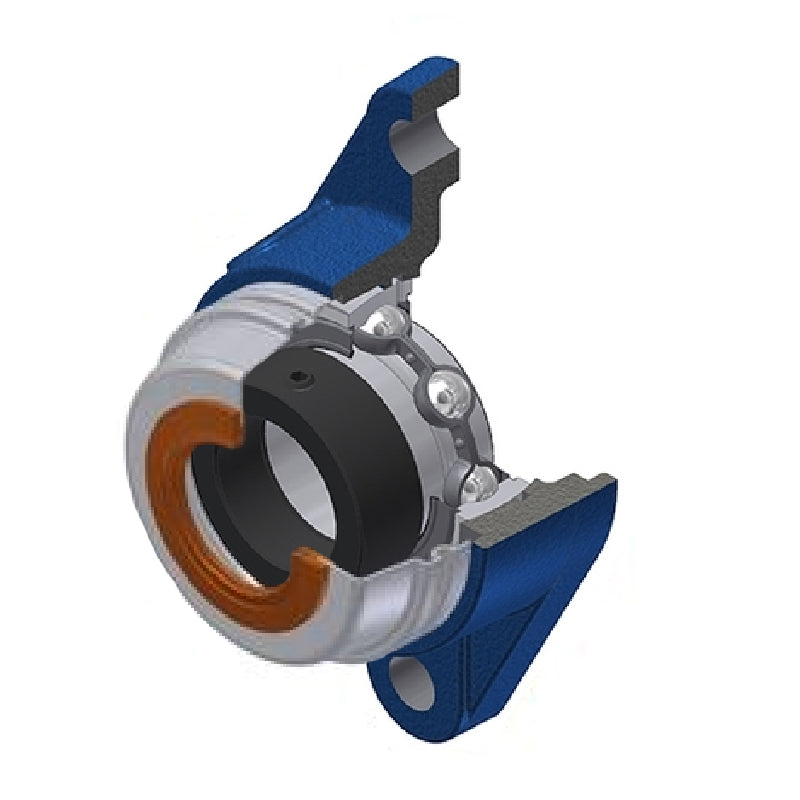

SNR ESFLE205COE Metric Two Bolt Cast Iron Oval Housing with 25mm Bore Eccentric Collar Insert with Wide Steel Plate Cover - Open Version - Allow 2-3 Days
SNR ESFLE205COE Metric Two Bolt Cast Iron Oval Housing with 25mm Bore Eccentric Collar Insert with Wide Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price
$73.63
ex VAT
Regular price
Sale price
$73.63
ex VAT
In stock
Price Break
3+
$54.86
4+
$52.64
9+
$51.53
19+
$49.87
49+
$48.76
99+
$45.99
499+
$38.79
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
ESFLE200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25mm
- Style:
- ESFLE
- Bolt Hole Centres:
- 99mm
Technical
Technical

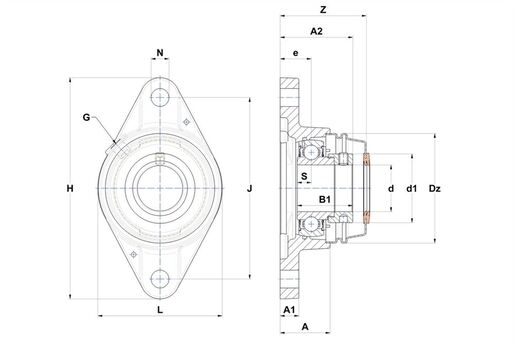

| --- | Dimensions |
|---|---|
| Shaft diameter d | 25mm |
| A | 29.3mm |
| A1 | 11mm |
| A2 | 42.4mm |
| B | 21.4mm |
| B1 | 30.9mm |
| d1 | 37.4mm |
| e | 19mm |
| H | 124mm |
| J | 99mm |
| L | 70mm |
| N | 11.5mm |
| S | 7.5mm |
| Dz | 60mm |
| Z | 50.6mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.632 kg |
