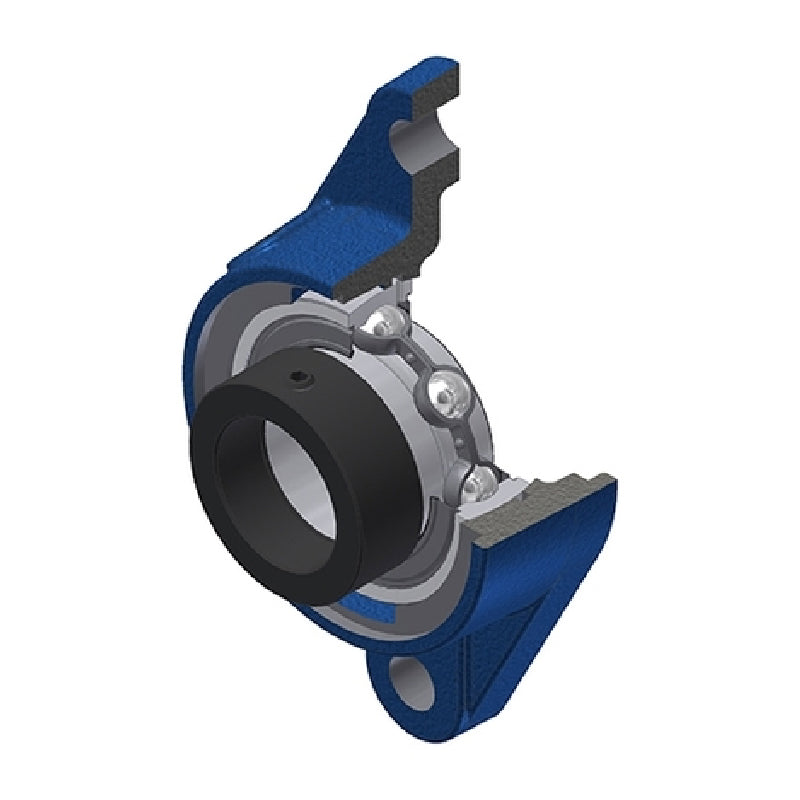

• SNR ESFLE205N Metric Two Bolt Cast Iron Oval Housing with 25mm Bore Eccentric Collar Insert - Allow 2-3 Days
  • SNR
1 2

SKU: ESFLE205N-SNR

SNR ESFLE205N Metric Two Bolt Cast Iron Oval Housing with 25mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR ESFLE205N Metric Two Bolt Cast Iron Oval Housing with 25mm Bore Eccentric Collar Insert - Allow 2-3 Days
$53.79 ex VAT
$53.79 ex VAT
Sale Sold out

In stock

Price Break
3+ $36.03
4+ $34.01
9+ $33.60
19+ $33.20
49+ $32.79
99+ $32.39
499+ $30.36
999+ $29.96
1999+ $29.55
2999+ $29.15
4999+ $28.34

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
25mm
Style:
ESFLE
Bolt Hole Centres:
99mm
Technical
--- Dimensions
Shaft diameter d 25mm
A 29.3mm
A1 11mm
A2 42.4mm
B 21.4mm
B1 30.9mm
d1 37.4mm
e 19mm
H 124mm
J 99mm
L 70mm
N 11.5mm
S 7.5mm
G R1/8″
--- Load rating
Dynamic load C 14 kN
Static load C0 7.88 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.59 kg
