SKU: ESFLE207N-SNR

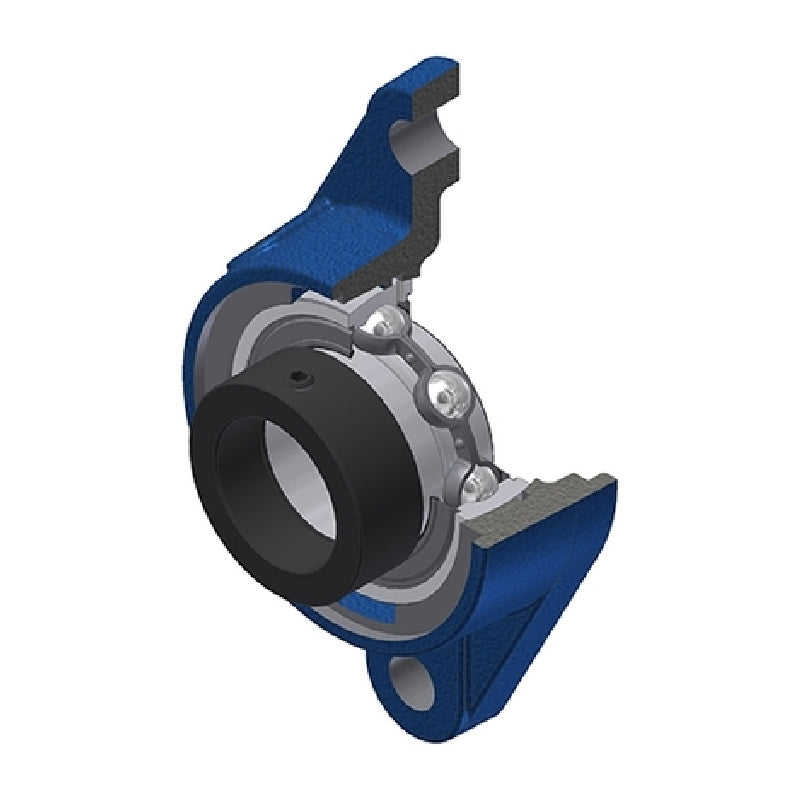

SNR ESFLE207N Metric Two Bolt Cast Iron Oval Housing with 35mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR ESFLE207N Metric Two Bolt Cast Iron Oval Housing with 35mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
$73.65
ex VAT
Regular price
Sale price
$73.65
ex VAT
In stock
Price Break
3+
$54.87
4+
$52.65
9+
$51.54
19+
$49.88
49+
$48.77
99+
$46.00
499+
$38.79
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
ESFLE200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 35mm
- Style:
- ESFLE
- Bolt Hole Centres:
- 130mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 35mm |
| A | 33.7mm |
| A1 | 12.5mm |
| A2 | 50.4mm |
| B | 25.4mm |
| B1 | 38.9mm |
| d1 | 51.1mm |
| e | 21mm |
| H | 155mm |
| J | 130mm |
| L | 92mm |
| N | 14mm |
| S | 9.5mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.1 kg |
