• SNR ESFLE210 Metric Two Bolt Cast Iron Oval Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days
  • SNR
1 2

SKU: ESFLE210-SNR

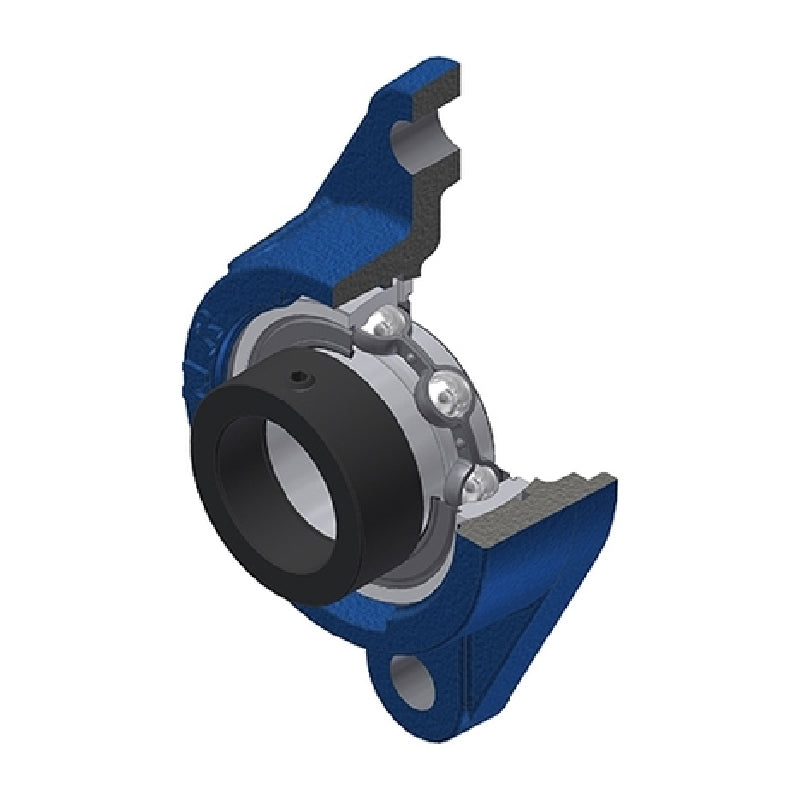

SNR ESFLE210 Metric Two Bolt Cast Iron Oval Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR ESFLE210 Metric Two Bolt Cast Iron Oval Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days
$58.91 ex VAT
$58.91 ex VAT
Sale Sold out

In stock

Price Break
3+ $39.46
4+ $37.25
9+ $36.80
19+ $36.36
49+ $35.91
99+ $35.47
499+ $33.25
999+ $32.81
1999+ $32.37
2999+ $31.92
4999+ $31.04

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
50mm
Style:
ESFLE
Bolt Hole Centres:
157mm
Technical
--- Dimensions
Shaft diameter d 50mm
A 41.6mm
A1 13mm
A2 60.7mm
B 30.2mm
B1 43.7mm
d1 67.2mm
e 28mm
H 190mm
J 157mm
L 116mm
N 18mm
S 11mm
G R1/8″
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.1 kg
