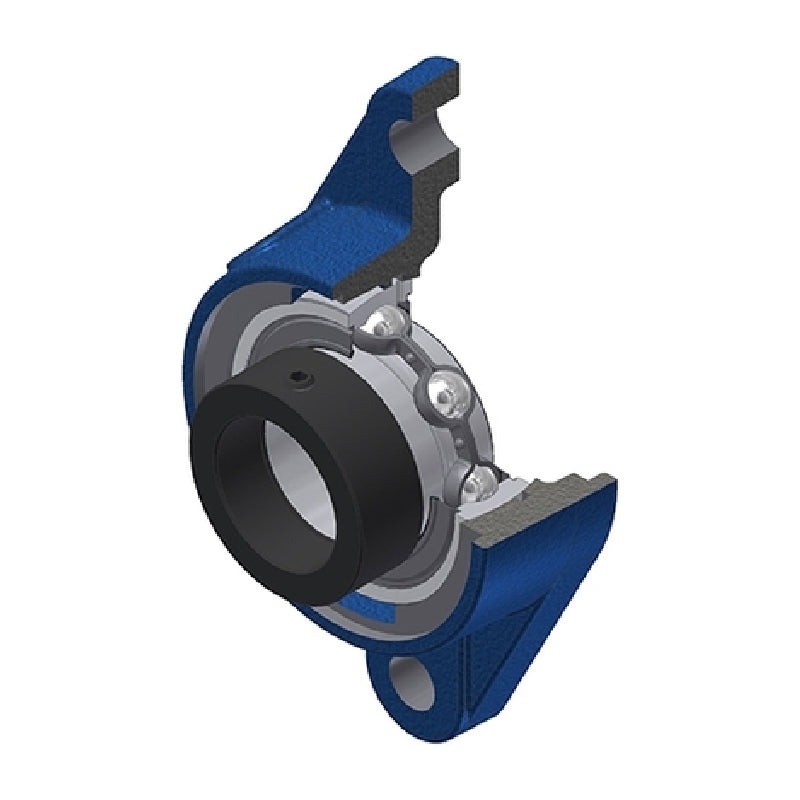

SNR ESFLE210N Metric Two Bolt Cast Iron Oval Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR ESFLE210N Metric Two Bolt Cast Iron Oval Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
$69.16
ex VAT
Regular price
Sale price
$69.16
ex VAT
In stock
Price Break
3+
$46.33
4+
$43.72
9+
$43.20
19+
$42.68
49+
$42.16
99+
$41.64
499+
$39.04
999+
$38.52
1999+
$38.00
2999+
$37.48
4999+
$36.44
Quantity
Couldn't load pickup availability
Share this product
Description
Description
ESFLE200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- ESFLE
- Bolt Hole Centres:
- 157mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 50mm |
| A | 41.6mm |
| A1 | 13mm |
| A2 | 60.7mm |
| B | 30.2mm |
| B1 | 43.7mm |
| d1 | 67.2mm |
| e | 28mm |
| H | 190mm |
| J | 157mm |
| L | 116mm |
| N | 18mm |
| S | 11mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 2.1 kg |
