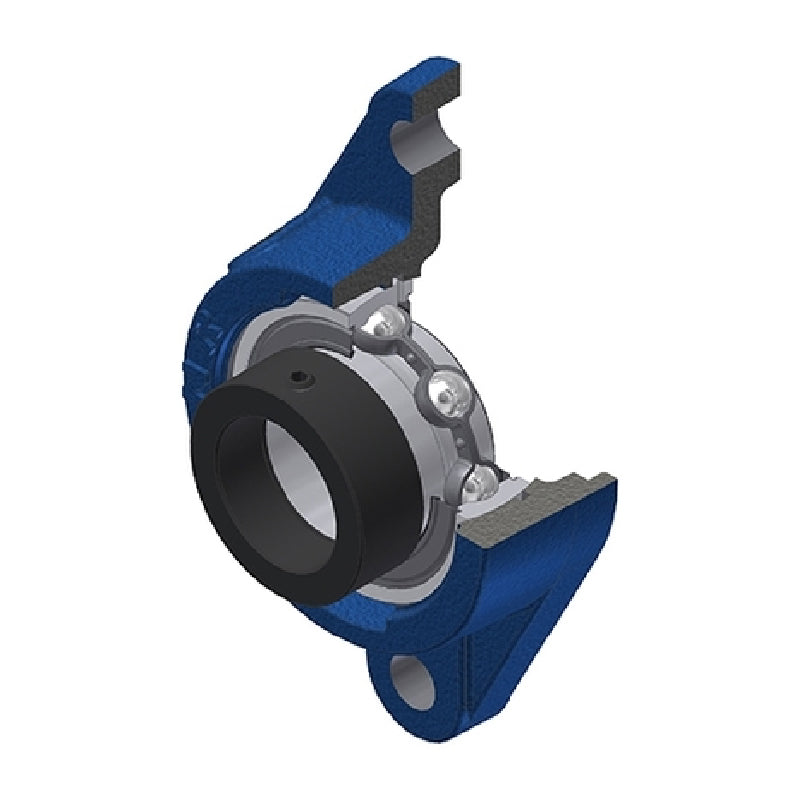

• SNR ESFLE212 Metric Two Bolt Cast Iron Oval Housing with 60mm Bore Eccentric Collar Insert - Allow 2-3 Days
  • SNR
1 2

SKU: ESFLE212-SNR

SNR ESFLE212 Metric Two Bolt Cast Iron Oval Housing with 60mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR ESFLE212 Metric Two Bolt Cast Iron Oval Housing with 60mm Bore Eccentric Collar Insert - Allow 2-3 Days
$89.24 ex VAT
$89.24 ex VAT
Sale Sold out

In stock

Price Break
3+ $59.77
4+ $56.41
9+ $55.74
19+ $55.07
49+ $54.40
99+ $53.73
499+ $50.37
999+ $49.70
1999+ $49.02
2999+ $48.35
4999+ $47.01

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
60mm
Style:
ESFLE
Bolt Hole Centres:
202mm
Technical
--- Dimensions
Shaft diameter d 60mm
A 50.4mm
A1 16mm
A2 71.3mm
B 33.4mm
B1 49.3mm
d1 82mm
e 34mm
H 238mm
J 202mm
L 138mm
N 18mm
S 12mm
G R1/8″
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 3.4 kg
