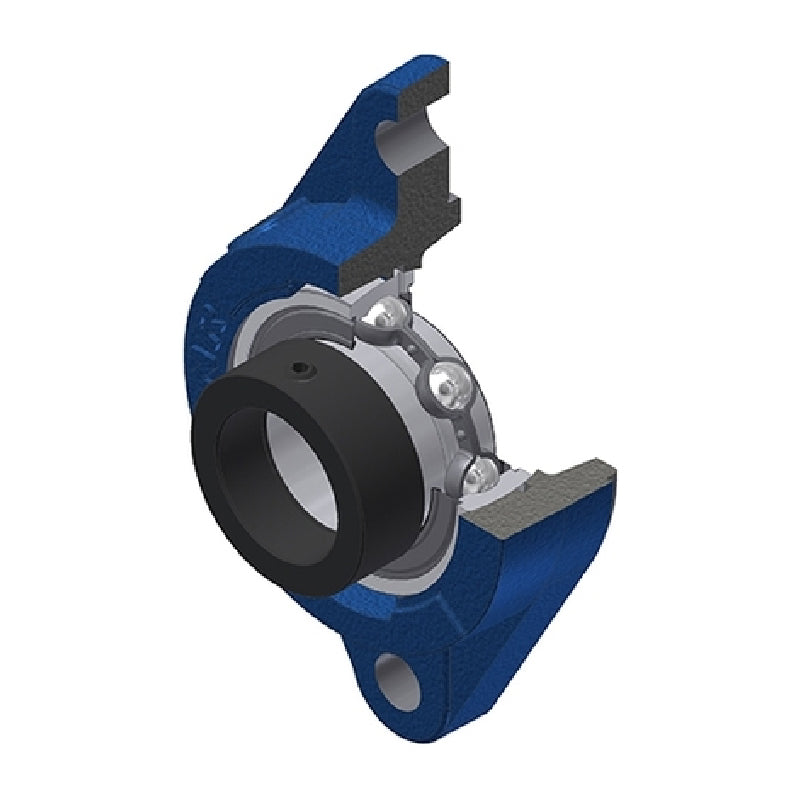

• SNR ESFLZ210 Metric Two Bolt Cast Iron Oval Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days
  • SNR
1 2

SKU: ESFLZ210-SNR

SNR ESFLZ210 Metric Two Bolt Cast Iron Oval Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR ESFLZ210 Metric Two Bolt Cast Iron Oval Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days
$71.72 ex VAT
$71.72 ex VAT
Sale Sold out

In stock

Price Break
3+ $48.04
4+ $45.34
9+ $44.80
19+ $44.26
49+ $43.72
99+ $43.18
499+ $40.48
999+ $39.94
1999+ $39.40
2999+ $38.86
4999+ $37.78

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
50mm
Style:
ESFLZ
Bolt Hole Centres:
157mm
Technical

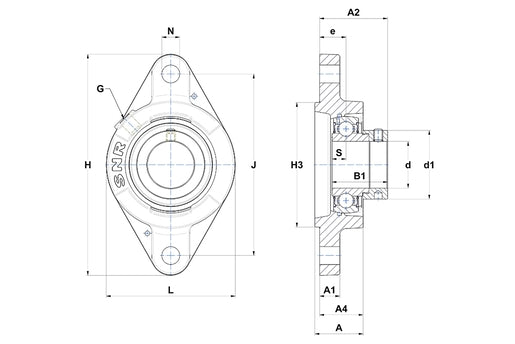

--- Dimensions
Shaft diameter d 50mm
A 41mm
A1 13mm
A2 56.7mm
A4 37mm
B 30.2mm
B1 43.7mm
d1 67.2mm
e 24mm
H 190mm
H3 105mm
J 157mm
L 116mm
N 14mm
S 11mm
G R1/8″
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.1 kg
