SKU: ESFLZ212-SNR

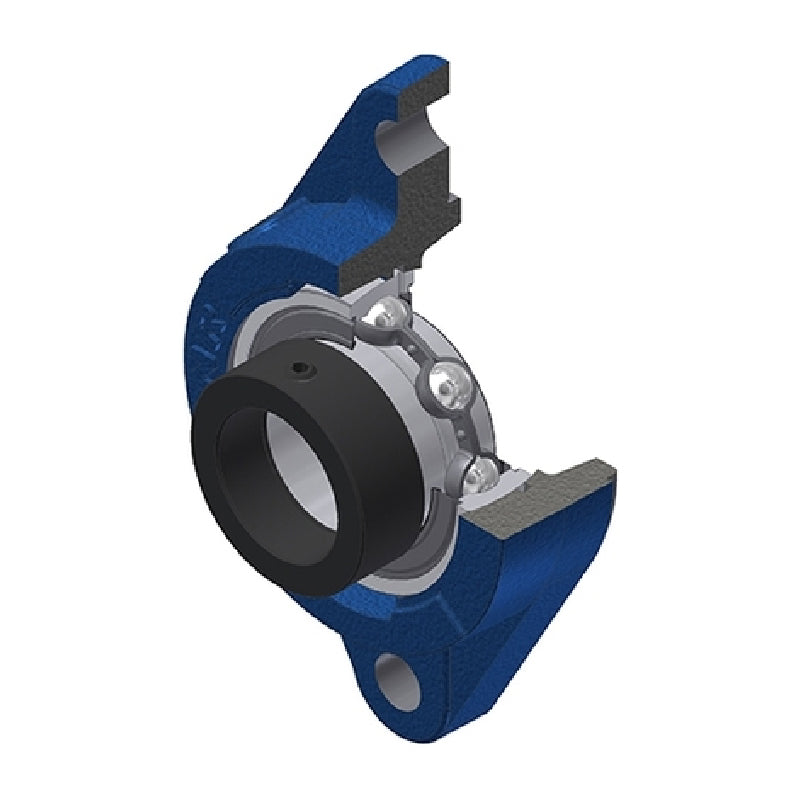

SNR ESFLZ212 Metric Two Bolt Cast Iron Oval Housing with 60mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR ESFLZ212 Metric Two Bolt Cast Iron Oval Housing with 60mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
$132.52
ex VAT
Regular price
Sale price
$132.52
ex VAT
In stock
Price Break
3+
$98.72
4+
$94.73
9+
$92.74
19+
$89.75
49+
$87.75
99+
$82.77
499+
$69.80
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
ESFLZ200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 60mm
- Style:
- ESFLZ
- Bolt Hole Centres:
- 202mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 60mm |
| A | 49mm |
| A1 | 16mm |
| A2 | 67.3mm |
| A4 | 45mm |
| B | 33.4mm |
| B1 | 49.3mm |
| d1 | 82mm |
| e | 30mm |
| H | 238mm |
| H3 | 130mm |
| J | 202mm |
| L | 138mm |
| N | 18mm |
| S | 12mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 52.5 kN |
| Static load C0 | 32.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 3.4 kg |
