• SNR ESFTE208 Metric Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 40mm Bore
  • SNR
1 2

SKU: ESFTE208-SNR

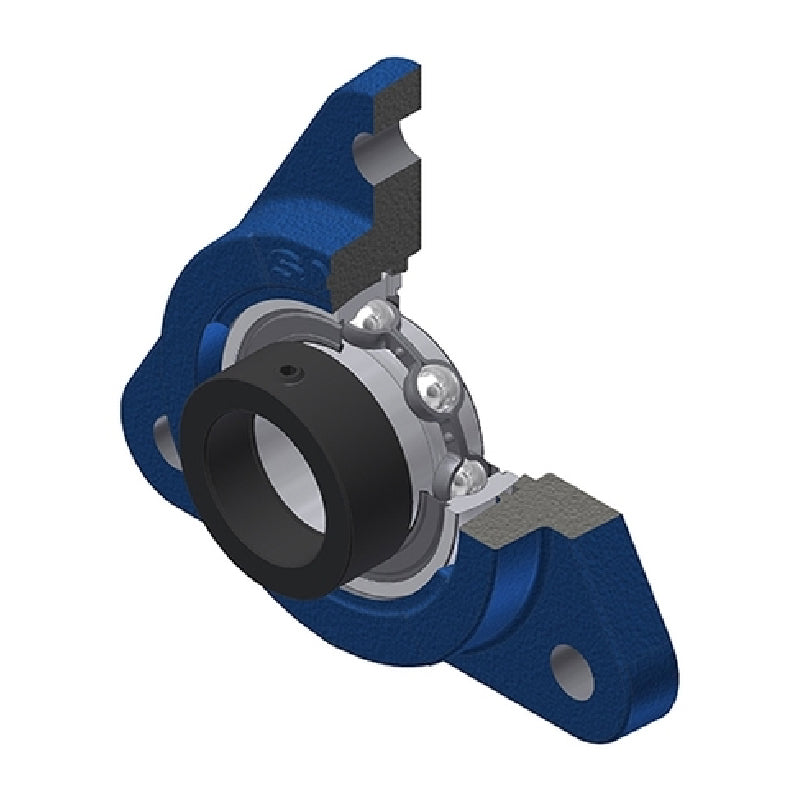

SNR ESFTE208 Metric Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 40mm Bore

SNR ESFTE208 Metric Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 40mm Bore
$56.35 ex VAT
$56.35 ex VAT
Sale Sold out

In stock

Price Break
3+ $37.75
4+ $35.63
9+ $35.20
19+ $34.78
49+ $34.35
99+ $33.93
499+ $31.81
999+ $31.38
1999+ $30.96
2999+ $30.54
4999+ $29.69

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
40mm
Style:
ESFTE
Bolt Hole Centres:
140mm
Technical
--- Dimensions
Shaft diameter d 40mm
A 30mm
A1 16mm
A2 51.5mm
B 30.2mm
B1 43.7mm
d1 58mm
e 18.8mm
H 153mm
H1 51mm
J 140mm
N 13.5mm
S 11mm
G R1/8″
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.34 kg
