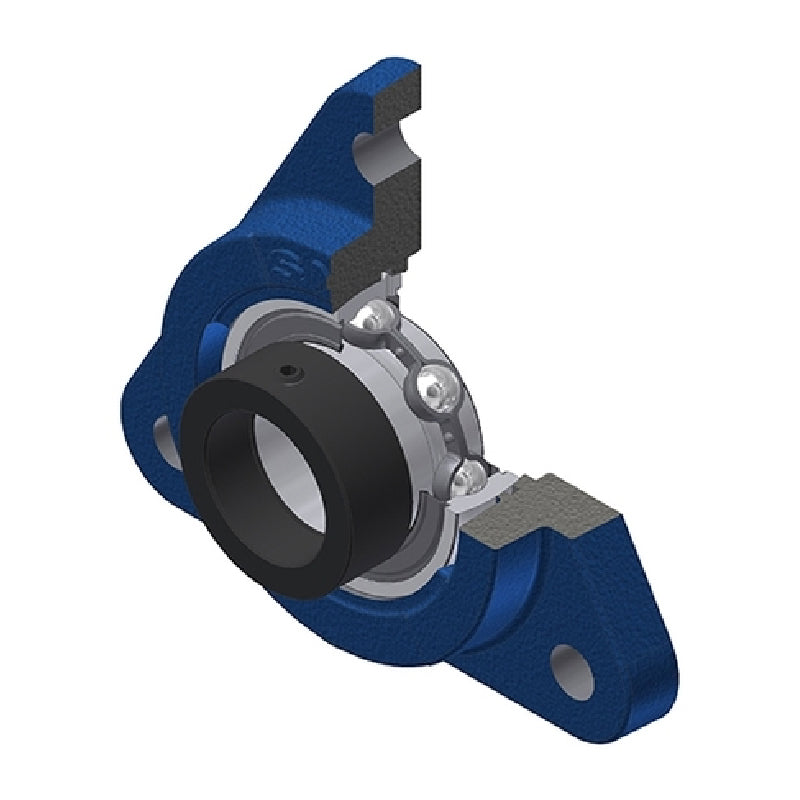

• SNR ESFTE209 Metric Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 45mm Bore - Allow 2-3 Days
  • SNR
1 2

SKU: ESFTE209-SNR

SNR ESFTE209 Metric Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 45mm Bore - Allow 2-3 Days

SNR ESFTE209 Metric Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 45mm Bore - Allow 2-3 Days
$64.04 ex VAT
$64.04 ex VAT
Sale Sold out

In stock

Price Break
3+ $42.89
4+ $40.48
9+ $40.00
19+ $39.52
49+ $39.04
99+ $38.56
499+ $36.15
999+ $35.66
1999+ $35.18
2999+ $34.70
4999+ $33.74

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
45mm
Style:
ESFTE
Bolt Hole Centres:
160mm
Technical
--- Dimensions
Shaft diameter d 45mm
A 33mm
A1 16mm
A2 51.9mm
B 30.2mm
B1 43.7mm
d1 62mm
e 19.2mm
H 150mm
H1 55mm
J 160mm
N 14mm
S 11mm
G R1/8″
--- Load rating
Dynamic load C 31.85 kN
Static load C0 20.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.09 kg
