SKU: ESP204-SNR

SNR ESP204 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 20mm Eccentric Collar Insert - Allow 2-3 Days

SNR ESP204 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 20mm Eccentric Collar Insert - Allow 2-3 Days
$29.88 ex VAT
$29.88 ex VAT
Sale Sold out

In stock

Price Break
3+ $20.02
4+ $18.89
9+ $18.67
19+ $18.44
49+ $18.22
99+ $17.99
499+ $16.87
999+ $16.64
1999+ $16.42
2999+ $16.19
4999+ $15.74

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
20mm
Style:
ESP
Bolt Hole Centres:
95mm
Technical

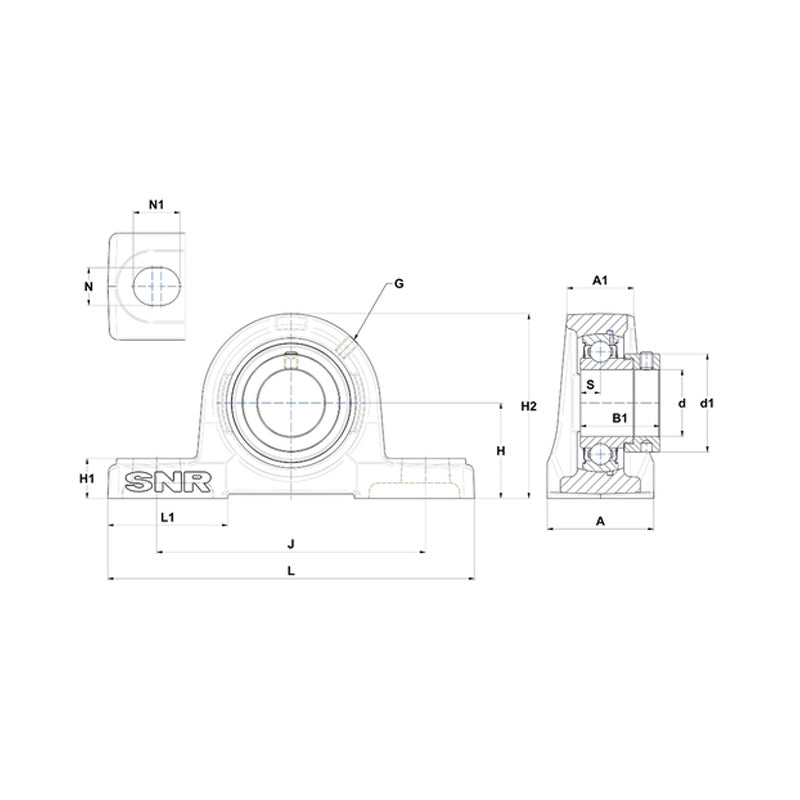

--- Dimensions
Shaft diameter d 20mm
A 38mm
A1 22mm
B 21.4mm
d1 32.4mm
H 33.3mm
H1 15mm
H2 65mm
J 95mm
L 127mm
L1 42mm
N 13mm
N1 19mm
S 7.5mm
G M6x1
--- Load rating
Dynamic load C 12.8 kN
Static load C0 6.65 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.65 kg
