• SNR ESP205 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 25mm Eccentric Collar Insert - Allow 2-3 Days
  • SNR ESP205 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 25mm Eccentric Collar Insert - Allow 2-3 Days
  • SNR
1 3

SKU: ESP205-SNR

SNR ESP205 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 25mm Eccentric Collar Insert - Allow 2-3 Days

SNR ESP205 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 25mm Eccentric Collar Insert - Allow 2-3 Days
$31.30 ex VAT
$31.30 ex VAT
Sale Sold out

In stock

Price Break
3+ $20.97
4+ $19.79
9+ $19.56
19+ $19.32
49+ $19.09
99+ $18.85
499+ $17.67
999+ $17.44
1999+ $17.20
2999+ $16.96
4999+ $16.49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
25mm
Style:
ESP
Bolt Hole Centres:
105mm
Technical

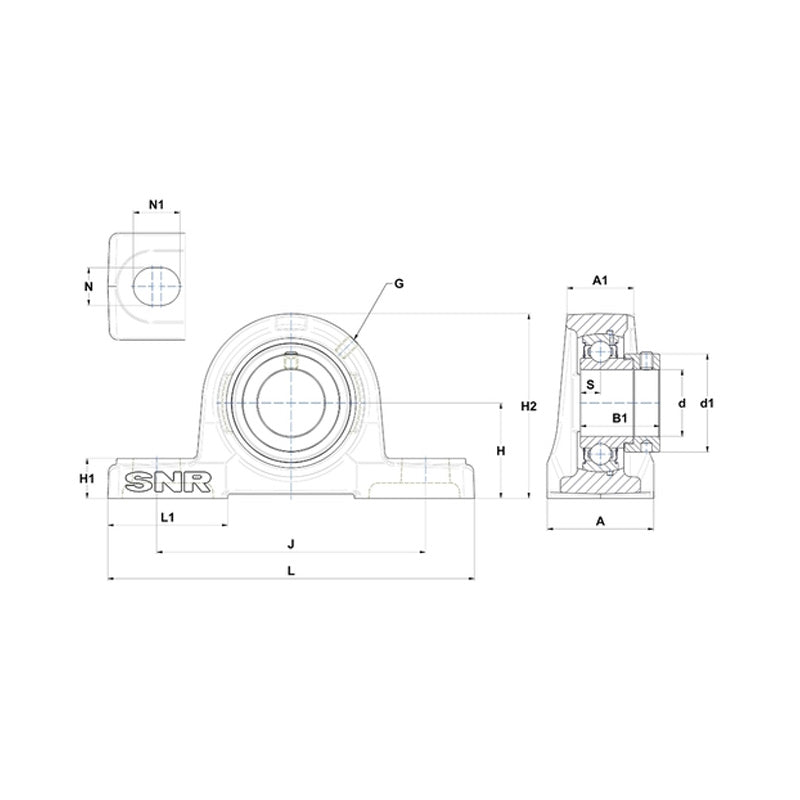

--- Dimensions
Shaft diameter d 25mm
A 38mm
A1 26mm
B 21.4mm
d1 37.4mm
H 36.5mm
H1 16mm
H2 70mm
J 105mm
L 140mm
L1 42mm
N 13mm
N1 19mm
S 7.5mm
G M6x1
--- Load rating
Dynamic load C 14 kN
Static load C0 7.88 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.79 kg
