SKU: ESP206-19-SNR

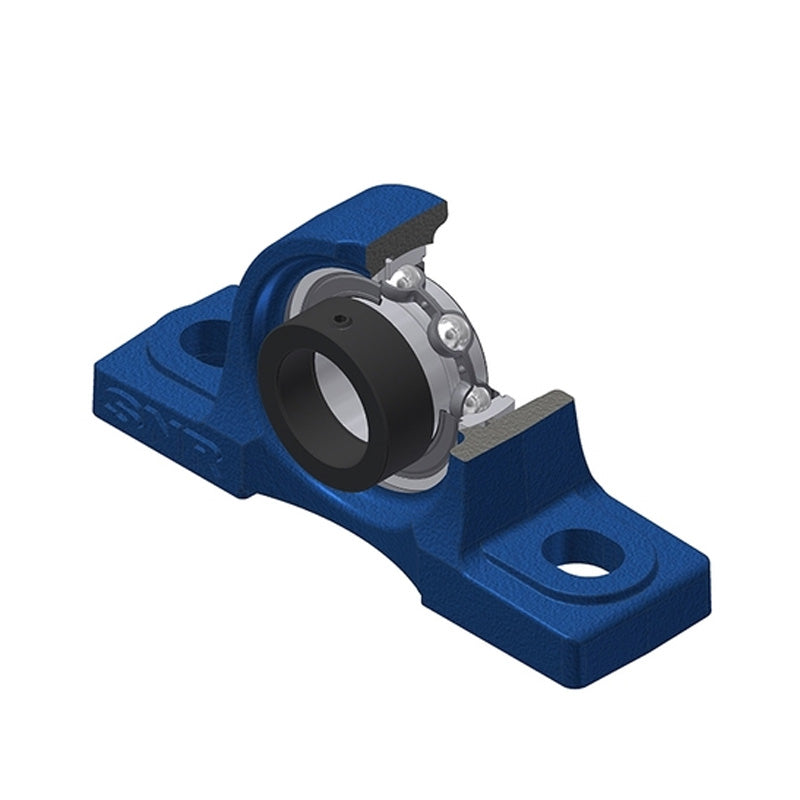

SNR ESP206-19 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-3/16 inch Eccentric Collar Insert - Allow 2-3 Days

SNR ESP206-19 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-3/16 inch Eccentric Collar Insert - Allow 2-3 Days
Regular price $47.08 ex VAT
Regular price Sale price $47.08 ex VAT
Sale Sold out

In stock

Price Break
3+ $35.08
4+ $33.66
9+ $32.95
19+ $31.89
49+ $31.18
99+ $29.41
499+ $24.80
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

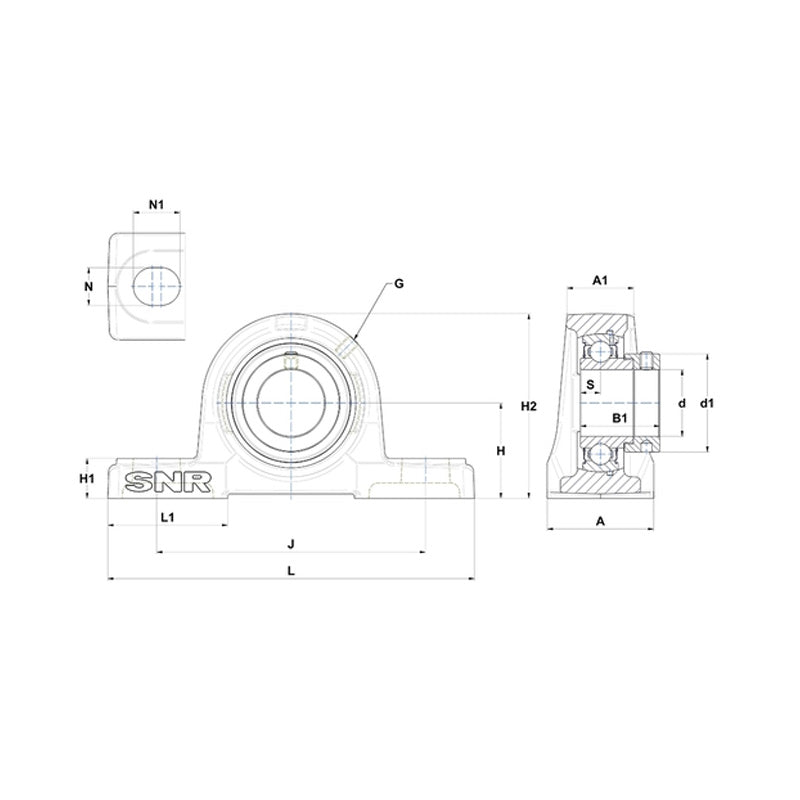

--- Dimensions
Shaft diameter d 1-3/16 inch
A 48mm
A1 30mm
B 23.8mm
d1 44.1mm
H 42.9mm
H1 18mm
H2 83mm
J 121mm
L 165mm
L1 54mm
N 17mm
N1 21mm
S 9mm
G M6x1
--- Load rating
Dynamic load C 19.5 kN
Static load C0 11.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 8 Nm
Mass 1.35 kg
