SKU: ESP207-SNR

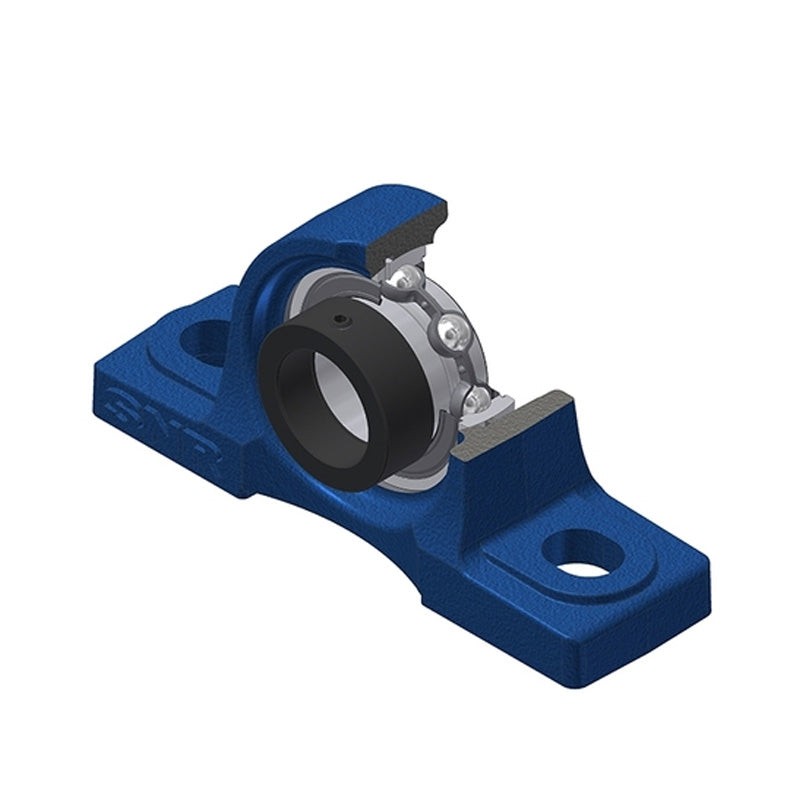

SNR ESP207 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days

SNR ESP207 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days
$43.26 ex VAT
$43.26 ex VAT
Sale Sold out

In stock

Price Break
3+ $28.98
4+ $27.35
9+ $27.02
19+ $26.70
49+ $26.37
99+ $26.05
499+ $24.42
999+ $24.09
1999+ $23.77
2999+ $23.44
4999+ $22.79

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
35mm
Style:
ESP
Bolt Hole Centres:
127mm
Technical

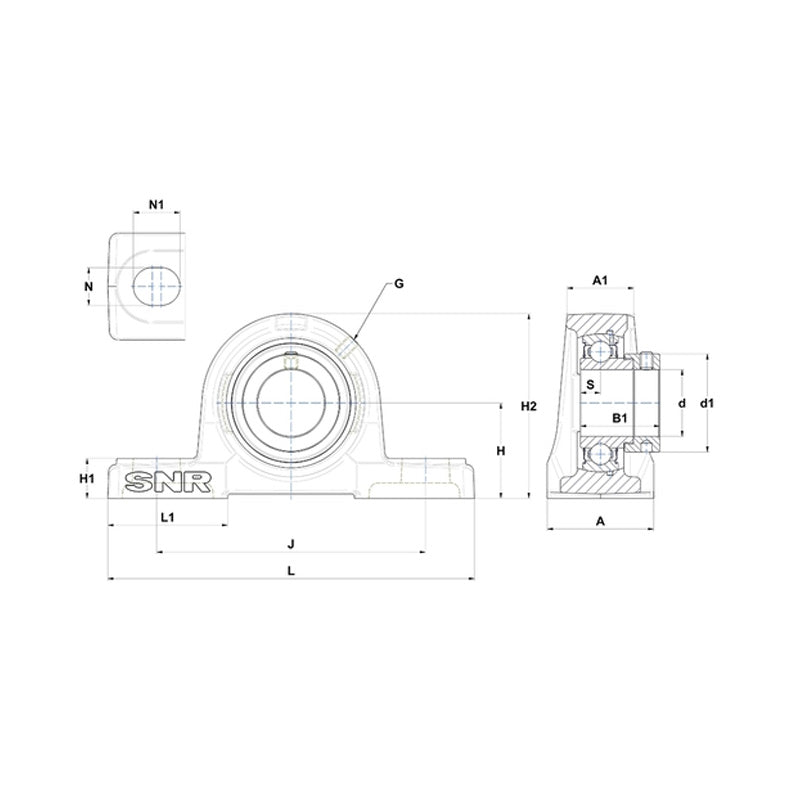

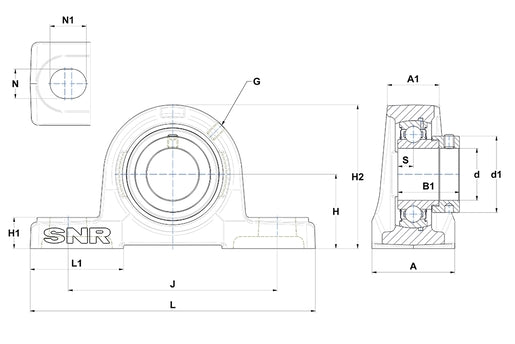

--- Dimensions
Shaft diameter d 35mm
A 48mm
A1 31mm
B 25.4mm
d1 51.1mm
H 47.6mm
H1 19mm
H2 94mm
J 127mm
L 167mm
L1 54mm
N 17mm
N1 21mm
S 9.5mm
G M6x1
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.7 kg
