SKU: ESP211-SNR

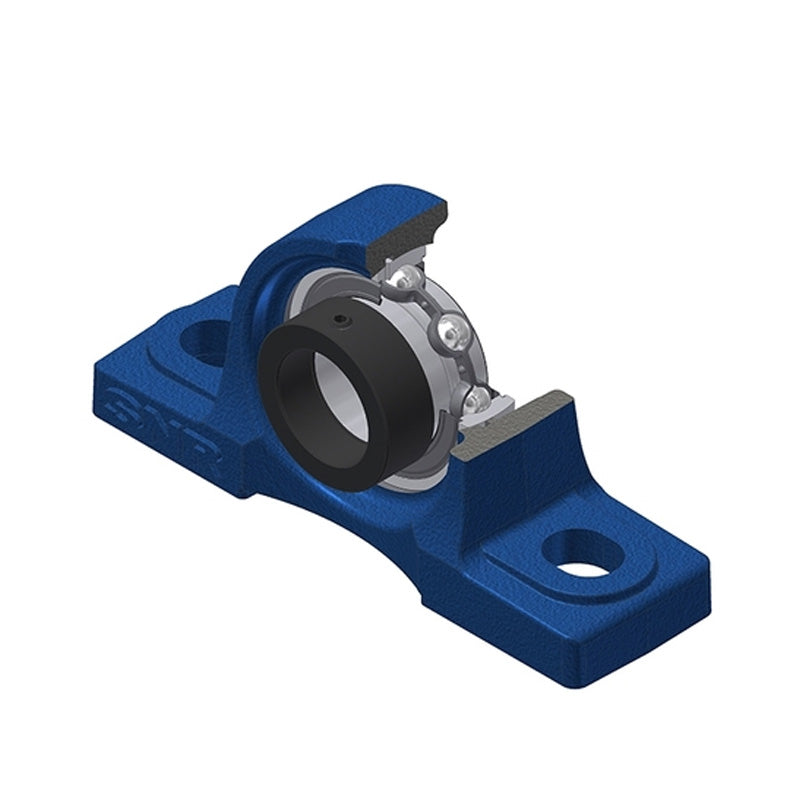

SNR ESP211 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days
SNR ESP211 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
$102.99
ex VAT
Regular price
Sale price
$102.99
ex VAT
In stock
Price Break
3+
$76.73
4+
$73.63
9+
$72.08
19+
$69.75
49+
$68.20
99+
$64.33
499+
$54.25
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
ESP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 55mm
- Style:
- ESP
- Bolt Hole Centres:
- 171mm
Technical
Technical

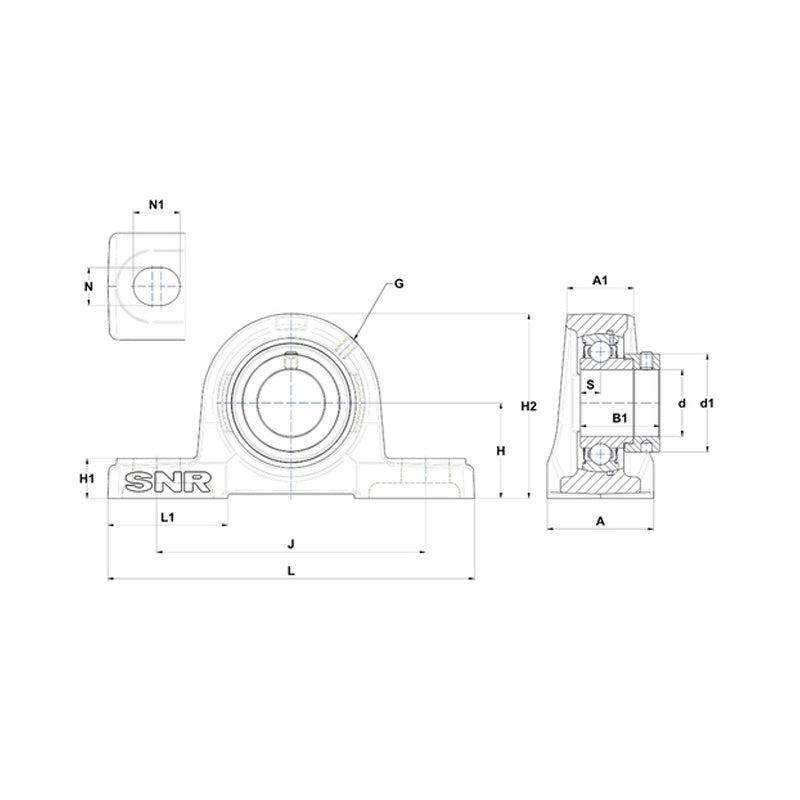

| --- | Dimensions |
|---|---|
| Shaft diameter d | 55mm |
| A | 60mm |
| A1 | 40mm |
| B | 32.5mm |
| d1 | 74.5mm |
| H | 63.5mm |
| H1 | 22mm |
| H2 | 126mm |
| J | 171mm |
| L | 219mm |
| L1 | 70mm |
| N | 20mm |
| N1 | 25mm |
| S | 12mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 43.55 kN |
| Static load C0 | 29.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 3.47 kg |
