SKU: ESP211N-SNR

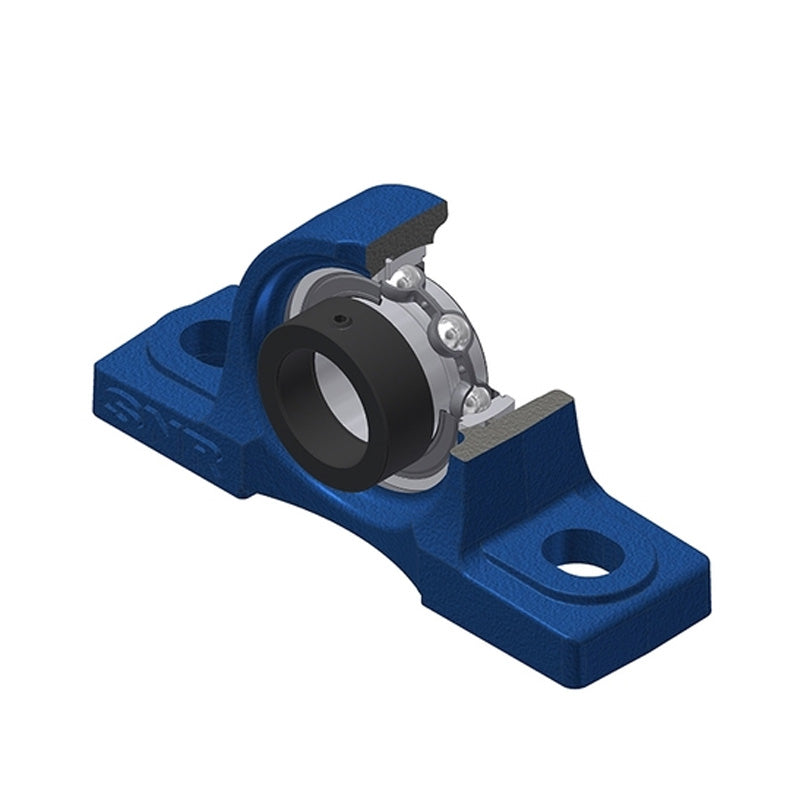

SNR ESP211N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days

SNR ESP211N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days
Regular price $103.11 ex VAT
Regular price Sale price $103.11 ex VAT
Sale Sold out

In stock

Price Break
3+ $76.81
4+ $73.71
9+ $72.16
19+ $69.83
49+ $68.28
99+ $64.40
499+ $54.31
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

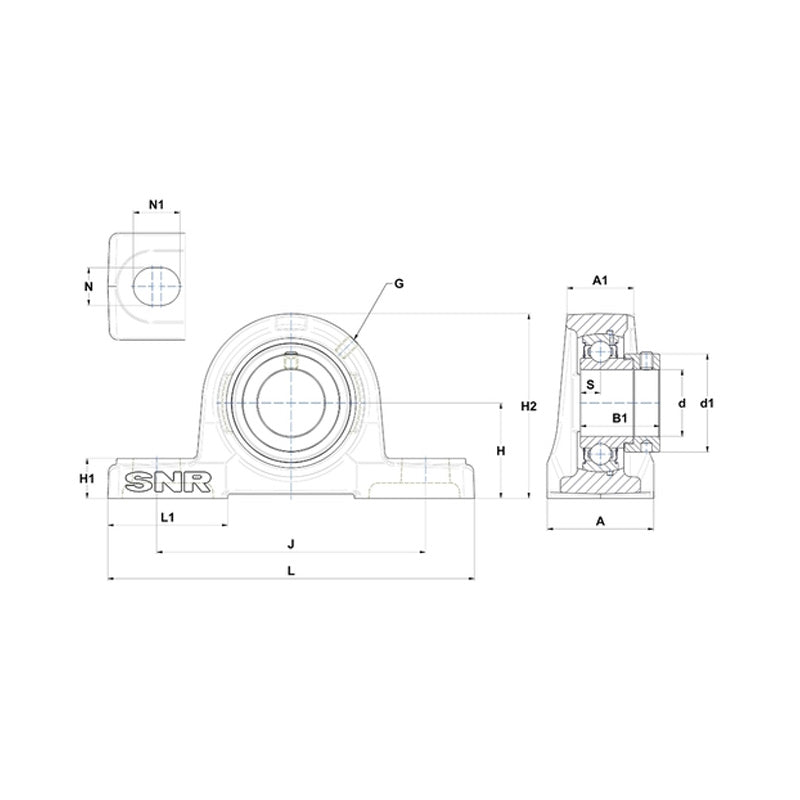

--- Dimensions
Shaft diameter d 55mm
A 60mm
A1 40mm
B 32.5mm
d1 74.5mm
H 63.5mm
H1 22mm
H2 126mm
J 171mm
L 219mm
L1 70mm
N 20mm
N1 25mm
S 12mm
G M6x1
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 3.27 kg
