SKU: ESP212-SNR

SNR ESP212 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Eccentric Collar Insert - Allow 2-3 Days

SNR ESP212 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Eccentric Collar Insert - Allow 2-3 Days
$86.87 ex VAT
$86.87 ex VAT
Sale Sold out

In stock

Price Break
3+ $58.19
4+ $54.92
9+ $54.27
19+ $53.61
49+ $52.96
99+ $52.31
499+ $49.04
999+ $48.38
1999+ $47.73
2999+ $47.08
4999+ $45.77

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
60mm
Style:
ESP
Bolt Hole Centres:
184mm
Technical

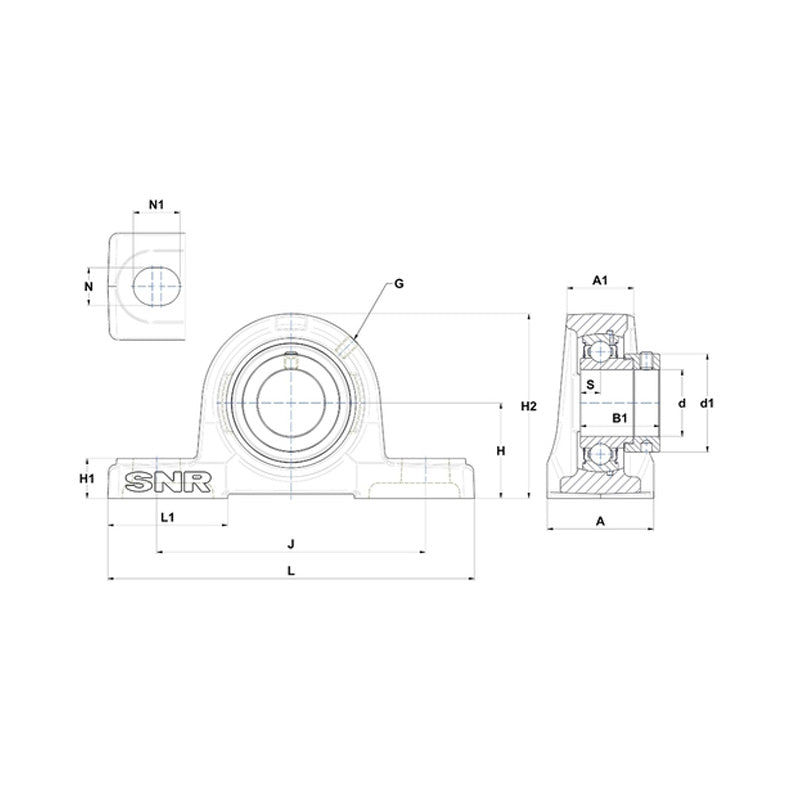

--- Dimensions
Shaft diameter d 60mm
A 70mm
A1 44mm
B 33.4mm
d1 82mm
H 69.8mm
H1 25mm
H2 138mm
J 184mm
L 241mm
L1 70mm
N 20mm
N1 25mm
S 12mm
G M6x1
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 4.7 kg
