SKU: ESPA203-SNR
SNR ESPA203 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 17mm Bore - Allow 2-3 Days
SNR ESPA203 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 17mm Bore - Allow 2-3 Days
Regular price
$35.30
ex VAT
Regular price
Sale price
$35.30
ex VAT
In stock
Price Break
3+
$26.29
4+
$25.23
9+
$24.70
19+
$23.90
49+
$23.37
99+
$22.04
499+
$18.59
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|

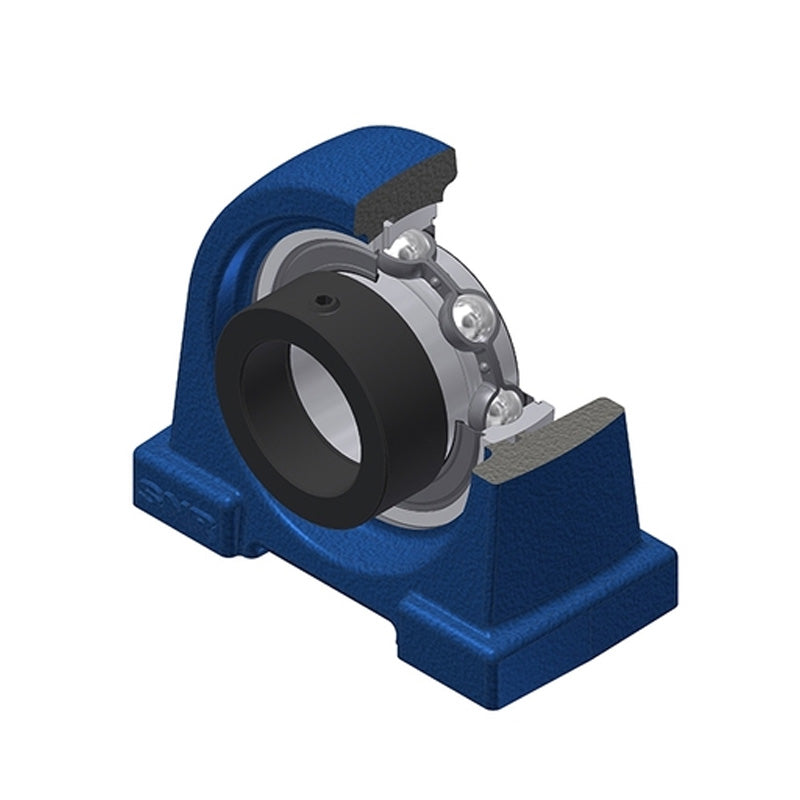

ESPA200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 17mm
- Style:
- ESPA
- Bolt Hole Centres:
- 48mm
Technical
Technical

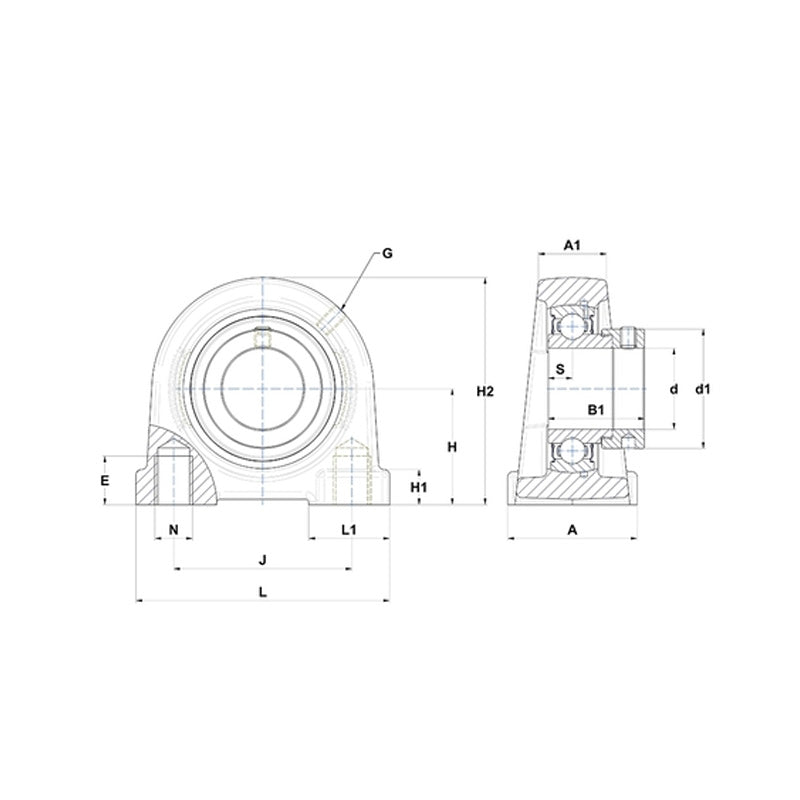

| --- | Dimensions |
|---|---|
| Shaft diameter | 17mm |
| A | 36mm |
| A1 | 19mm |
| B | 19.1mm |
| d1 | 27.2mm |
| E | 9mm |
| H | 30.2mm |
| H1 | 10mm |
| H2 | 57mm |
| J | 48mm |
| L | 70mm |
| L1 | 20mm |
| N | M8 |
| S | 6.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 9.55 kN |
| Static load C0 | 4.78 kN |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| --- | Unit information |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.43 kg |
