SKU: ESPA204-SNR

SNR ESPA204 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 20mm Bore

Name: SNR ESPA204 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 20mm Bore
Brand: SNR
SKU: ESPA204-SNR
Price: 31.30 USD
Availability: InStock

$31.30 ex VAT

Sale Sold out

In stock

Price Break

3+ $20.97

4+ $19.79

9+ $19.56

19+ $19.32

49+ $19.09

99+ $18.85

499+ $17.67

999+ $17.44

1999+ $17.20

2999+ $16.96

4999+ $16.49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: SNR - High Quality
Inside Diameter:: 20mm
Style:: ESPA
Bolt Hole Centres:: 52mm

Technical

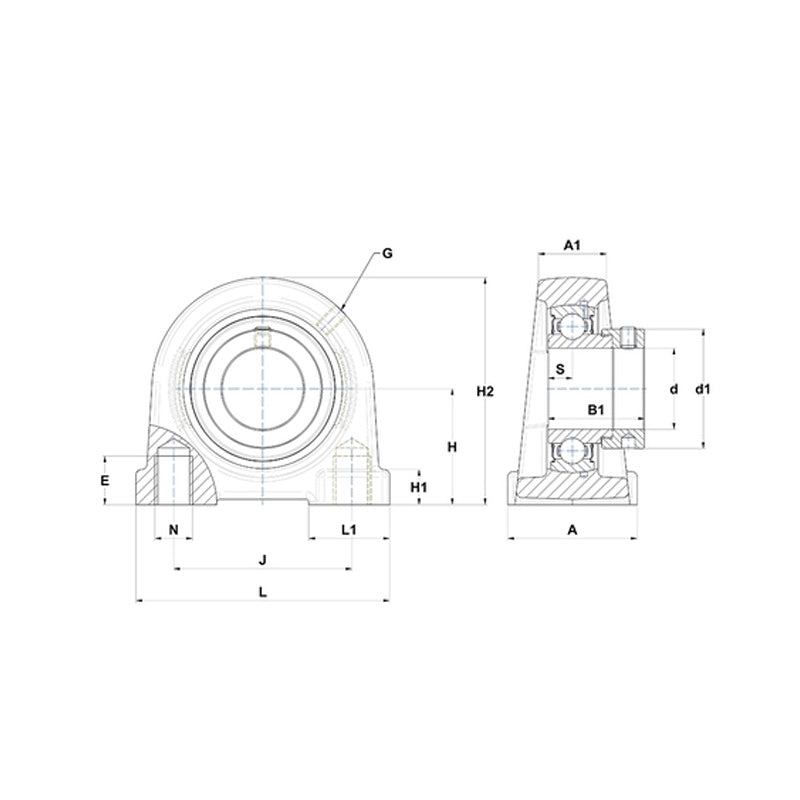

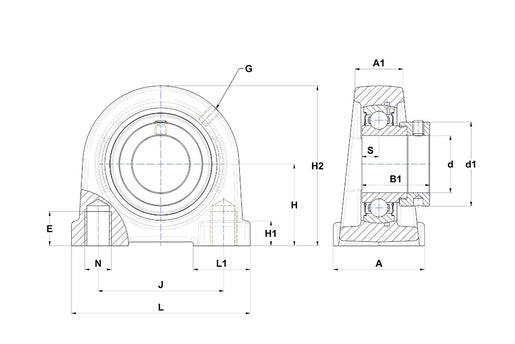

---	Dimensions
Shaft diameter	20mm
A	40mm
A1	22mm
B	21.4mm
d1	32.4mm
E	13mm
H	30.2mm
H1	11mm
H2	62mm
J	52mm
L	76mm
L1	22mm
N	M10
S	7.5mm
G	M6x1
---	Load rating
Dynamic load C	12.8 kN
Static load C0	6.65 kN
Operating temperature min.	-20°C
Operating temperature max.	100°C
---	Unit information
Recommended tightening torque for set screw	5.5 Nm
Mass	0.55 kg
