SKU: ESPA208-24-SNR

SNR ESPA208-24 Threaded Base Small Footprint Imperial Pillow / Plummer Block Housing with Eccentric Collar Insert 1-1/2 inch Bore - Allow 2-3 Days

SNR ESPA208-24 Threaded Base Small Footprint Imperial Pillow / Plummer Block Housing with Eccentric Collar Insert 1-1/2 inch Bore - Allow 2-3 Days
$73.54 ex VAT
$73.54 ex VAT
Sale Sold out

In stock

Price Break
3+ $54.79
4+ $52.57
9+ $51.47
19+ $49.81
49+ $48.70
99+ $45.93
499+ $38.74
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
ESPA200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint
Brand / Quality:
SNR - High Quality
Inside Diameter:
38.1mm = 1.5 (1-1/2) inch
Style:
ESPA
Bolt Hole Centres:
84mm
Technical

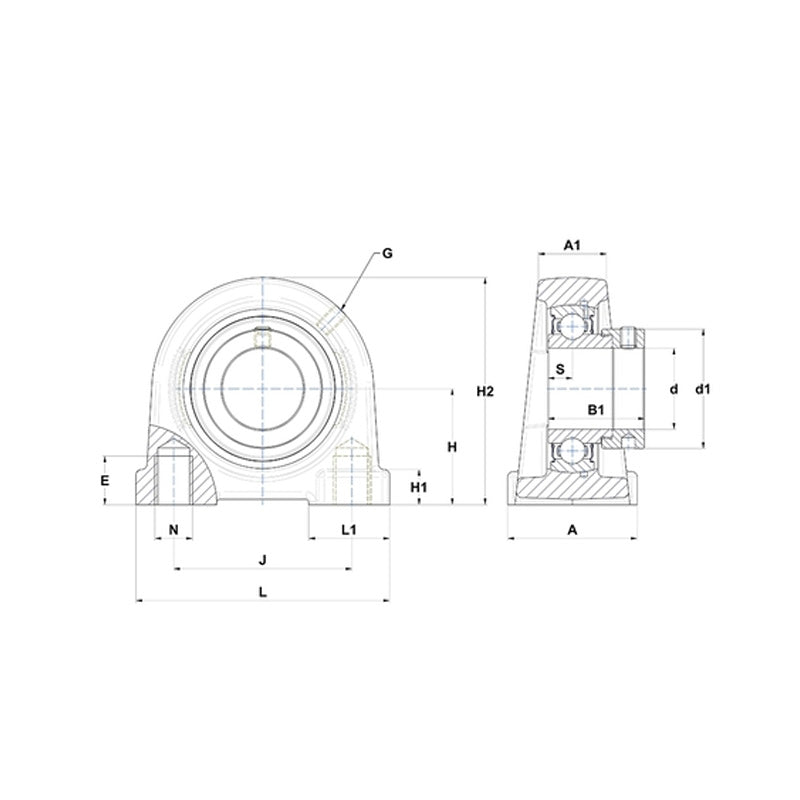

--- Dimensions
Shaft diameter 1-1/2 inch
A 54mm
A1 28mm
B 30.2mm
d1 58mm
E 20mm
H 49.2mm
H1 13mm
H2 100mm
J 84mm
L 116mm
L1 32mm
N M14
S 11mm
G M6x1
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 8 Nm
Mass 1.78 kg
