• SNR ESPAE204 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 20mm Bore - Allow 2-3 Days
  • SNR ESPAE204 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 20mm Bore - Allow 2-3 Days
  • SNR
1 3

SKU: ESPAE204-SNR

SNR ESPAE204 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 20mm Bore - Allow 2-3 Days

SNR ESPAE204 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 20mm Bore - Allow 2-3 Days
$30.41 ex VAT
$30.41 ex VAT
Sale Sold out

In stock

Price Break
3+ $20.37
4+ $19.23
9+ $19.00
19+ $18.77
49+ $18.54
99+ $18.31
499+ $17.17
999+ $16.94
1999+ $16.71
2999+ $16.48
4999+ $16.02

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
20mm
Style:
ESPAE
Bolt Hole Centres:
50.8mm
Technical

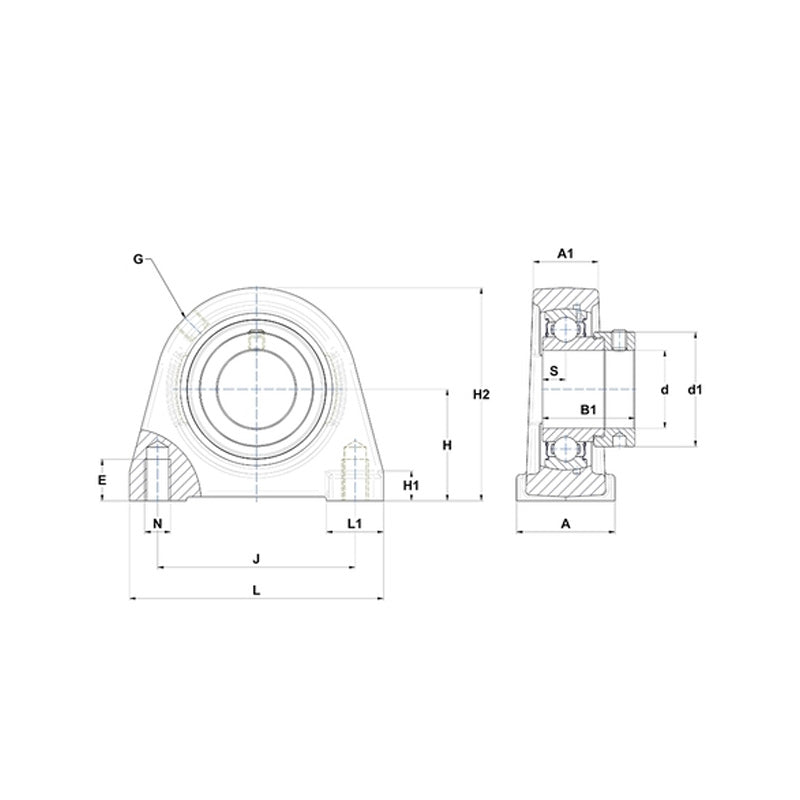

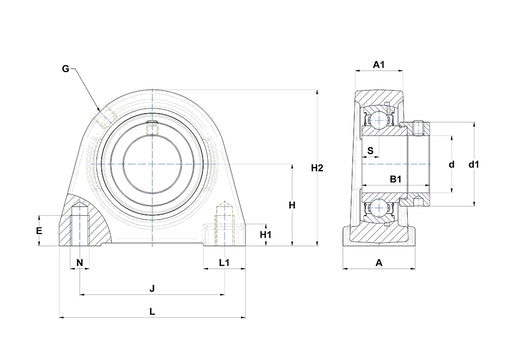

--- Dimensions
Shaft diameter 20mm
A 32mm
A1 19mm
B 21.4mm
d1 32.4mm
E 10mm
H 33.3mm
H1 9mm
H2 64mm
J 50.8mm
L 65mm
L1 18mm
N M8
S 7.5mm
G R1/8"
--- Load rating
Dynamic load C 12.8 kN
Static load C0 6.65 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 5.5 Nm
Mass 0.45 kg
