• SNR ESPAE205N Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 25mm Bore - Allow 2-3 Days
  • SNR ESPAE205N Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 25mm Bore - Allow 2-3 Days
  • SNR
1 3

SKU: ESPAE205N-SNR

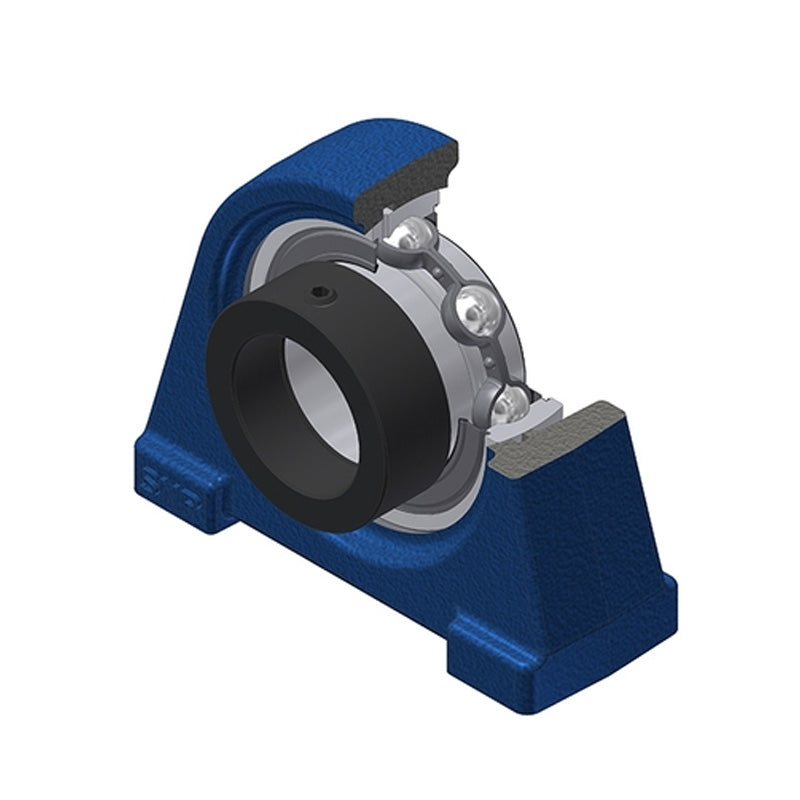

SNR ESPAE205N Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 25mm Bore - Allow 2-3 Days

SNR ESPAE205N Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 25mm Bore - Allow 2-3 Days
$38.70 ex VAT
$38.70 ex VAT
Sale Sold out

In stock

Price Break
3+ $25.93
4+ $24.47
9+ $24.18
19+ $23.89
49+ $23.60
99+ $23.31
499+ $21.85
999+ $21.56
1999+ $21.27
2999+ $20.97
4999+ $20.39

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
25mm
Style:
ESPAE
Bolt Hole Centres:
50.8mm
Technical

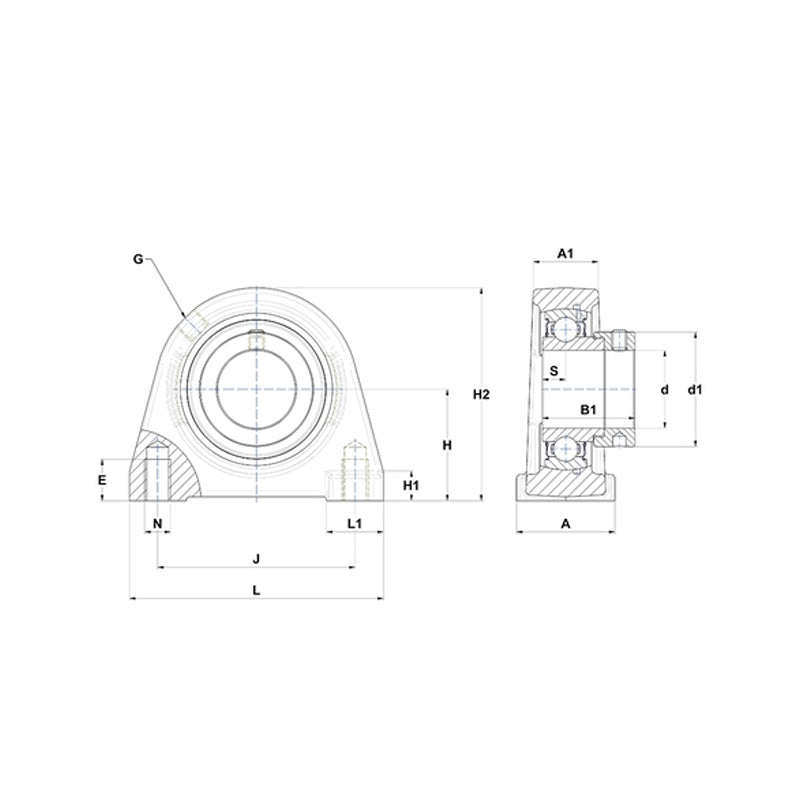

--- Dimensions
Shaft diameter 25mm
A 36mm
A1 21mm
B 21.4mm
d1 37.4mm
E 12.5mm
H 36.5mm
H1 10mm
H2 70mm
J 50.8mm
L 70mm
L1 21mm
N M10
S 7.5mm
G R1/8"
--- Load rating
Dynamic load C 14 kN
Static load C0 7.88 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 5.5 Nm
Mass 0.59 kg
