SKU: ESPAE208-SNR

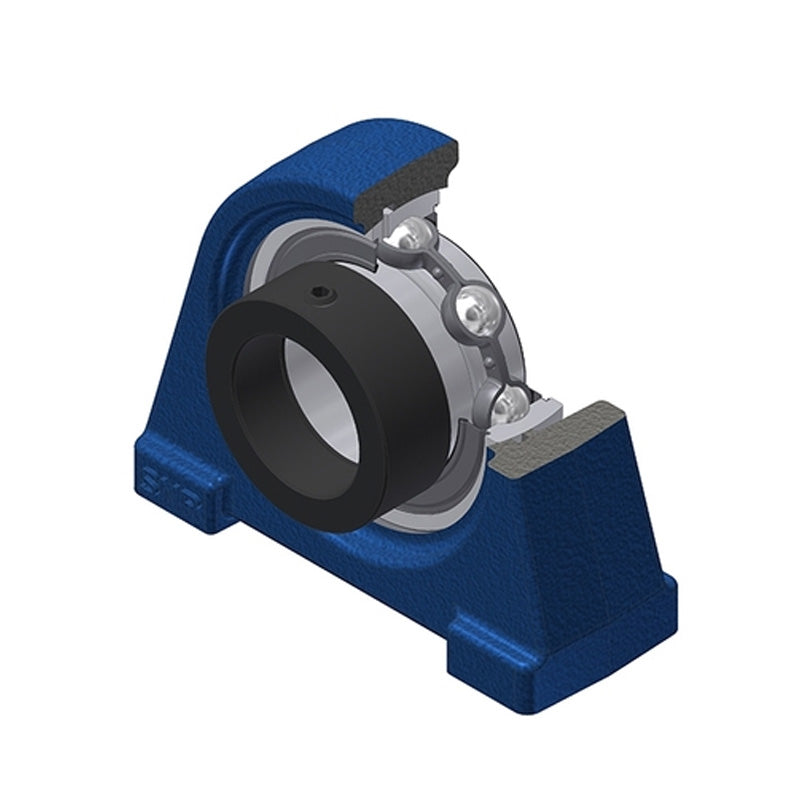

SNR ESPAE208 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 40mm Bore - Allow 2-3 Days

SNR ESPAE208 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 40mm Bore - Allow 2-3 Days
$52.26 ex VAT
$52.26 ex VAT
Sale Sold out

In stock

Price Break
3+ $35.00
4+ $33.04
9+ $32.64
19+ $32.25
49+ $31.86
99+ $31.47
499+ $29.50
999+ $29.11
1999+ $28.71
2999+ $28.32
4999+ $27.53

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
40mm
Style:
ESPAE
Bolt Hole Centres:
88.9mm
Technical

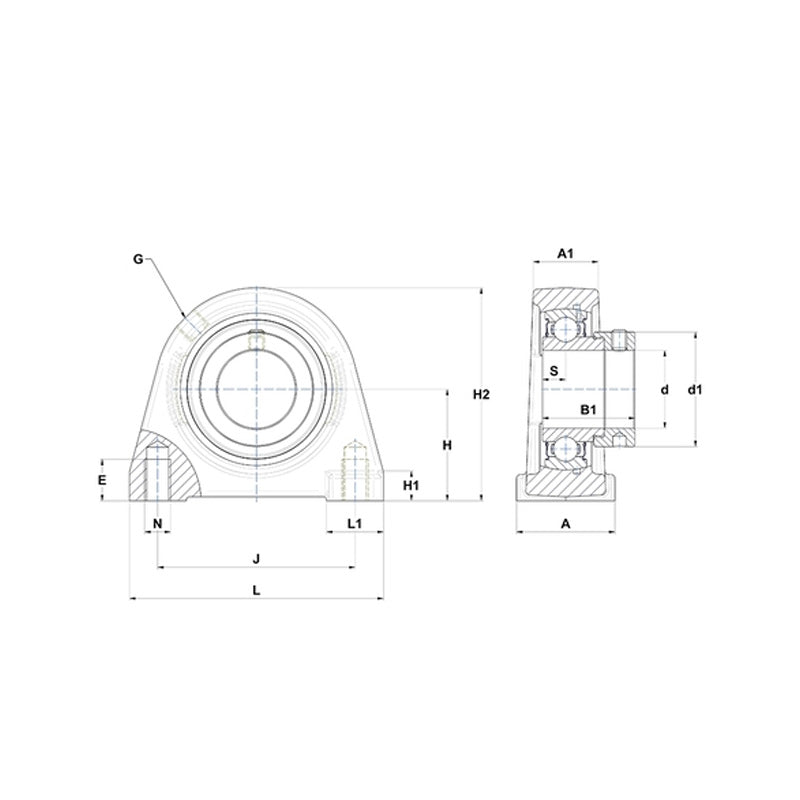

--- Dimensions
Shaft diameter 40mm
A 47mm
A1 30mm
B 30.2mm
d1 58mm
E 15mm
H 49.2mm
H1 13mm
H2 99mm
J 88.9mm
L 116mm
L1 27mm
N M12
S 11mm
G R1/8"
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 11.5 Nm
Mass 1.65 kg
