SNR ESPAE209N Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 45mm Bore - Allow 2-3 Days
SNR ESPAE209N Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 45mm Bore - Allow 2-3 Days
Regular price
$103.07
ex VAT
Regular price
Sale price
$103.07
ex VAT
In stock
Price Break
3+
$76.78
4+
$73.68
9+
$72.13
19+
$69.80
49+
$68.25
99+
$64.37
499+
$54.29
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|

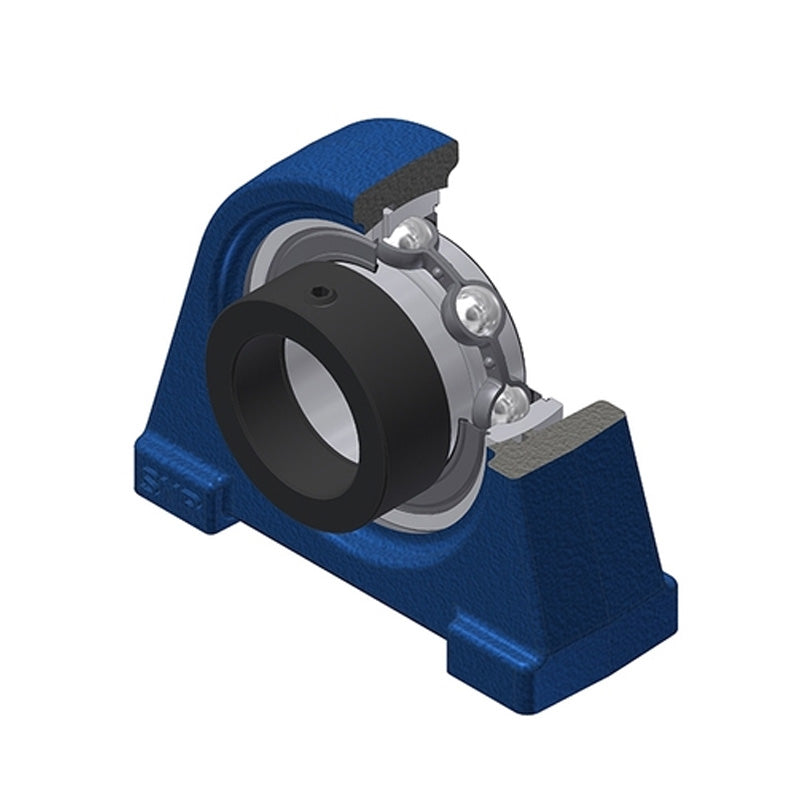

ESPAE200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- ESPAE
- Bolt Hole Centres:
- 95.3mm
Technical
Technical

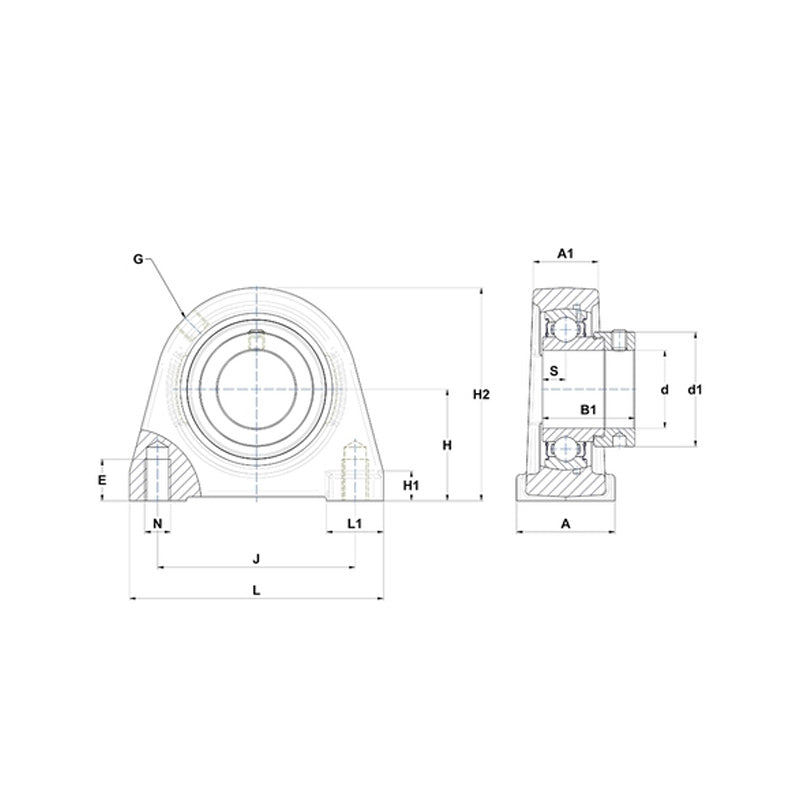

| --- | Dimensions |
|---|---|
| Shaft diameter | 45mm |
| A | 48mm |
| A1 | 32mm |
| B | 30.2mm |
| d1 | 62mm |
| E | 15mm |
| H | 53.9mm |
| H1 | 14mm |
| H2 | 107mm |
| J | 95.3mm |
| L | 120mm |
| L1 | 29mm |
| N | M12 |
| S | 11mm |
| G | R1/8" |
| --- | Load rating |
| Dynamic load C | 31.85 kN |
| Static load C0 | 20.8 kN |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| --- | Unit information |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.79 kg |
