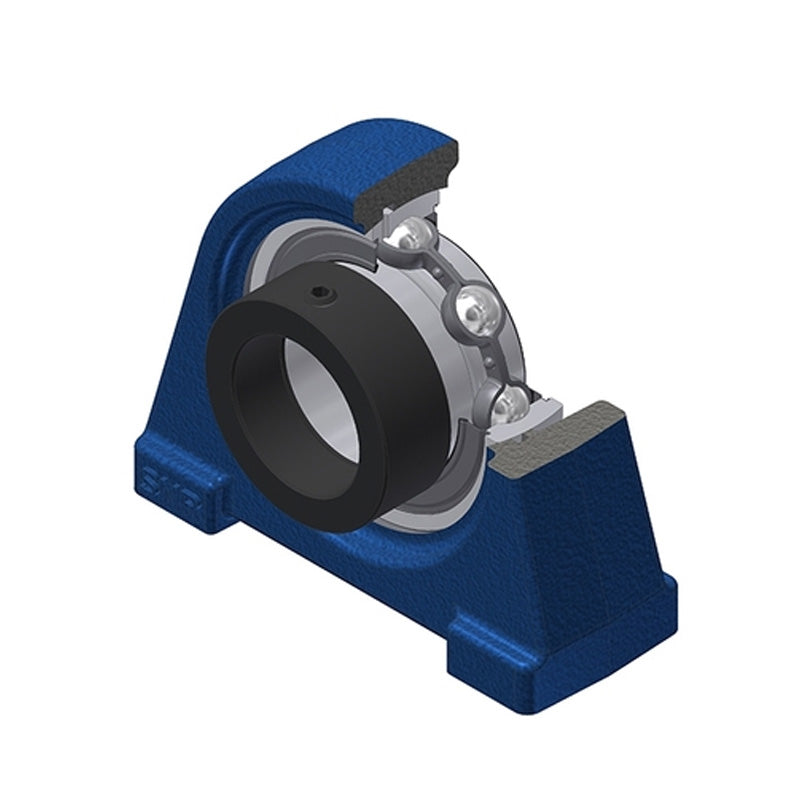

• SNR ESPAE210 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 50mm Bore - Allow 2-3 Days
  • SNR ESPAE210 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 50mm Bore - Allow 2-3 Days
  • SNR
1 3

SKU: ESPAE210-SNR

SNR ESPAE210 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 50mm Bore - Allow 2-3 Days

SNR ESPAE210 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 50mm Bore - Allow 2-3 Days
$64.69 ex VAT
$64.69 ex VAT
Sale Sold out

In stock

Price Break
3+ $43.34
4+ $40.90
9+ $40.42
19+ $39.93
49+ $39.44
99+ $38.96
499+ $36.52
999+ $36.03
1999+ $35.55
2999+ $35.06
4999+ $34.09

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
50mm
Style:
ESPAE
Bolt Hole Centres:
101.6mm
Technical

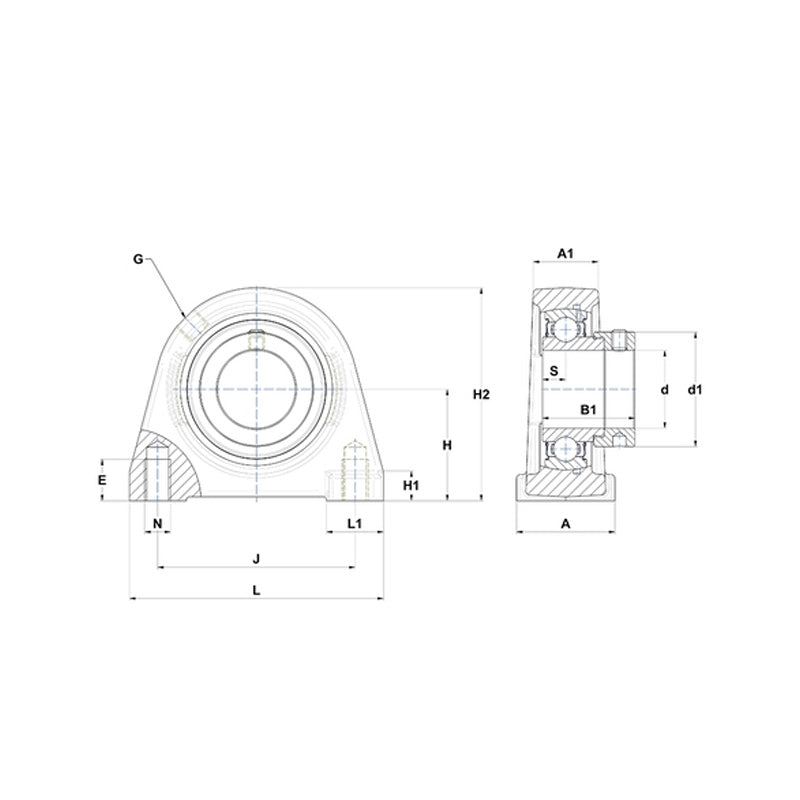

--- Dimensions
Shaft diameter 50mm
A 54mm
A1 34mm
B 30.2mm
d1 67.2mm
E 20mm
H 57.2mm
H1 15mm
H2 115mm
J 101.6mm
L 135mm
L1 33.5mm
N M16
S 11mm
G R1/8"
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 11.5 Nm
Mass 2.5 kg
