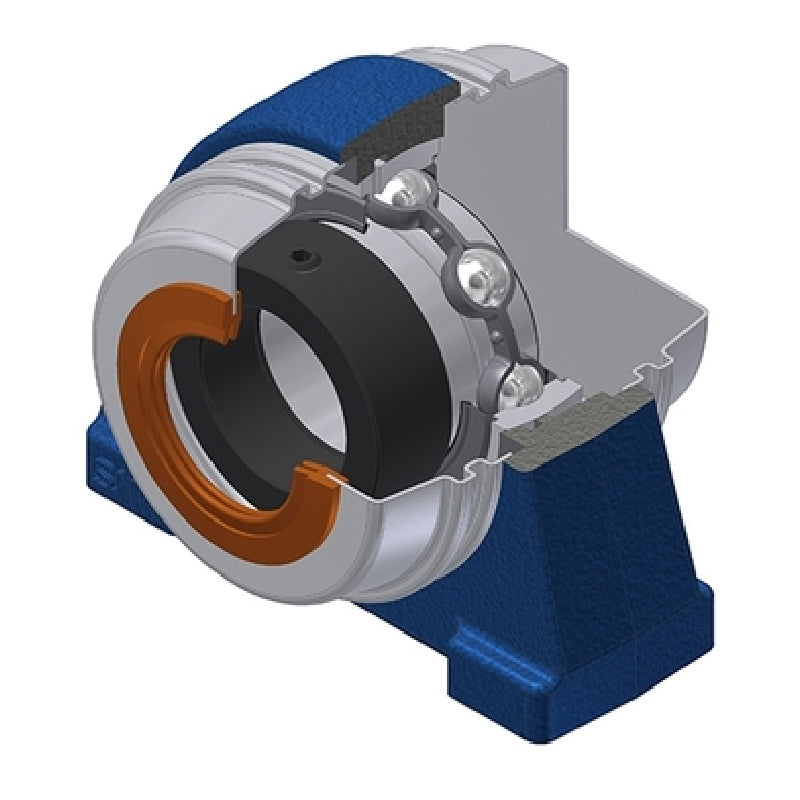

• SNR ESPAE210CCE Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 50mm Bore with Wide Steel Plate Cover - Closed Version - Allow 2-3 Days
1 1

SKU: ESPAE210CCE-SNR

SNR ESPAE210CCE Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 50mm Bore with Wide Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR ESPAE210CCE Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 50mm Bore with Wide Steel Plate Cover - Closed Version - Allow 2-3 Days
$206.07 ex VAT
$206.07 ex VAT
Sale Sold out

In stock

Price Break
3+ $153.52
4+ $147.32
9+ $144.22
19+ $139.56
49+ $136.46
99+ $128.71
499+ $108.55
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
ESPAE200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint
Brand / Quality:
SNR - High Quality
Inside Diameter:
50mm
Style:
ESPAE
Bolt Hole Centres:
101.6mm
Technical

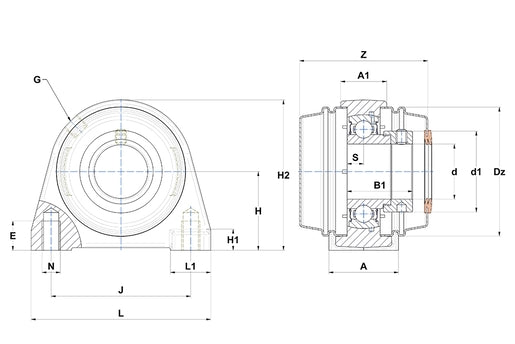

--- Dimensions
Shaft diameter 50mm
A 54mm
A1 34mm
B 30.2mm
d1 67.2mm
E 20mm
H 57.2mm
H1 15mm
H2 115mm
J 101.6mm
L 135mm
L1 33.5mm
N M16
S 11mm
Dz 100mm
Z 91.5mm
G R1/8"
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 11.5 Nm
Mass 2.66 kg
