SKU: ESPAE211N-SNR

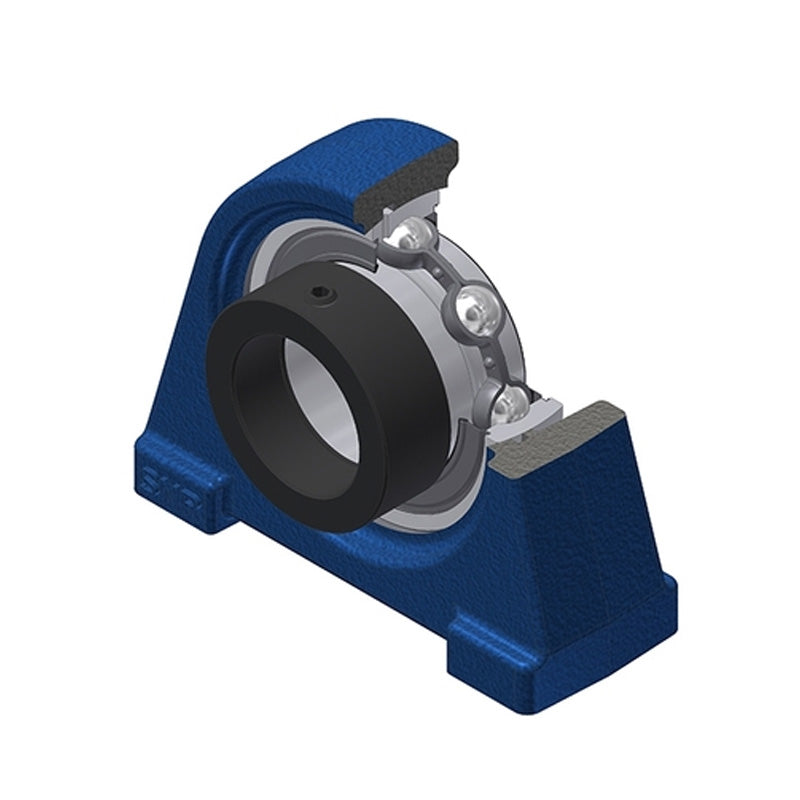

SNR ESPAE211N Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 55mm Bore - Allow 2-3 Days
SNR ESPAE211N Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 55mm Bore - Allow 2-3 Days
Regular price
$117.79
ex VAT
Regular price
Sale price
$117.79
ex VAT
In stock
Price Break
3+
$87.75
4+
$84.21
9+
$82.44
19+
$79.78
49+
$78.00
99+
$73.57
499+
$62.05
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
ESPAE200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 55mm
- Style:
- ESPAE
- Bolt Hole Centres:
- 118mm
Technical
Technical

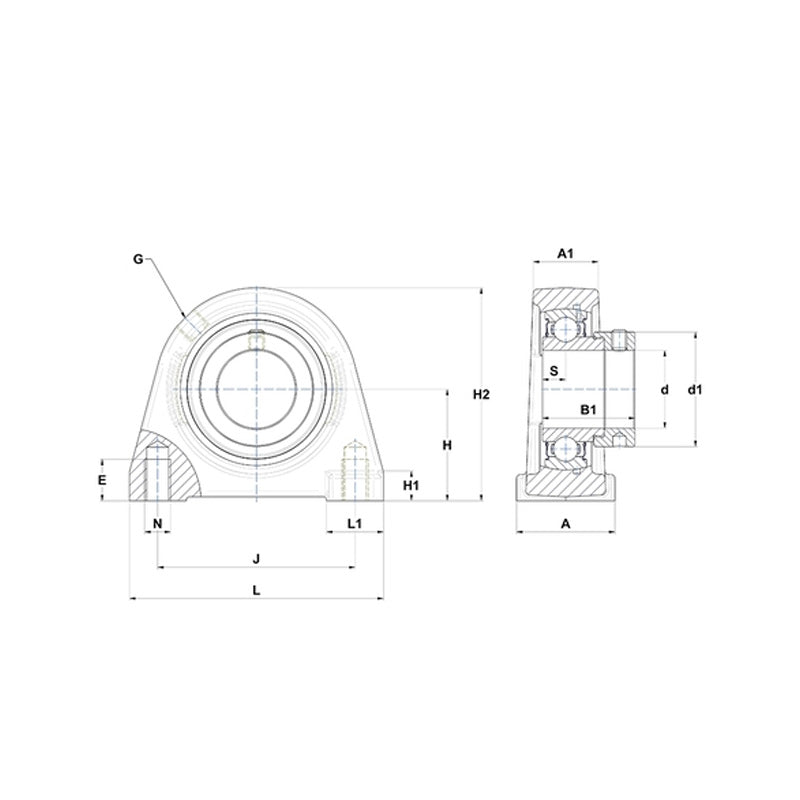

| --- | Dimensions |
|---|---|
| Shaft diameter | 55mm |
| A | 60mm |
| A1 | 35mm |
| B | 32.5mm |
| d1 | 74.5mm |
| E | 20mm |
| H | 64mm |
| H1 | 16mm |
| H2 | 125mm |
| J | 118mm |
| L | 150mm |
| L1 | 32mm |
| N | M16 |
| S | 12mm |
| G | R1/8" |
| --- | Load rating |
| Dynamic load C | 43.55 kN |
| Static load C0 | 29.2 kN |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| --- | Unit information |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 2.77 kg |
