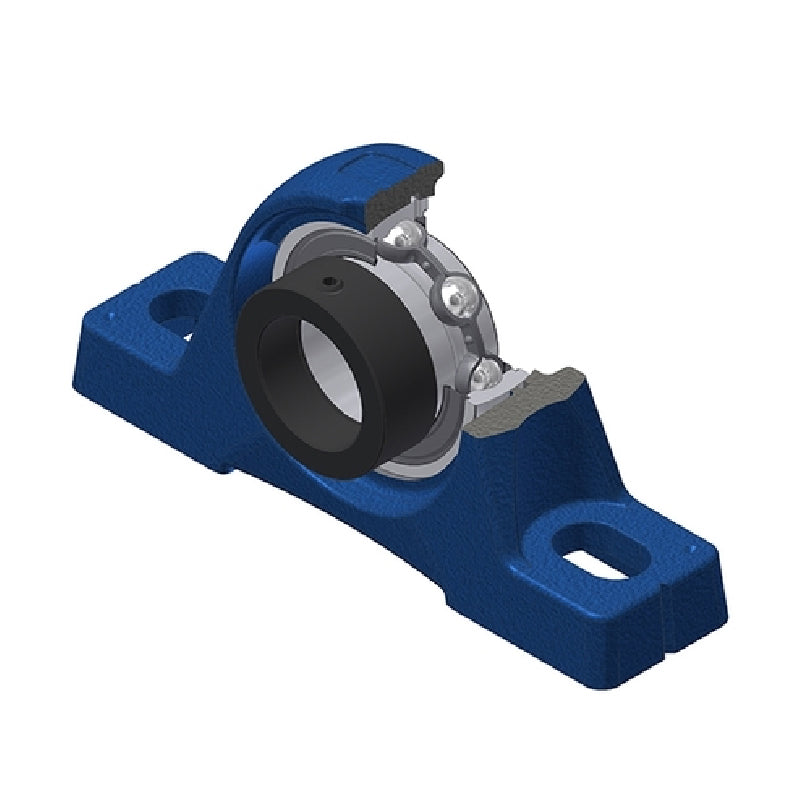

• SNR ESPE203 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 17mm Eccentric Collar Insert - Allow 2-3 Days
  • SNR
1 2

SKU: ESPE203-SNR

SNR ESPE203 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 17mm Eccentric Collar Insert - Allow 2-3 Days

SNR ESPE203 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 17mm Eccentric Collar Insert - Allow 2-3 Days
$29.46 ex VAT
$29.46 ex VAT
Sale Sold out

In stock

Price Break
3+ $19.74
4+ $18.63
9+ $18.41
19+ $18.18
49+ $17.96
99+ $17.74
499+ $16.63
999+ $16.41
1999+ $16.19
2999+ $15.97
4999+ $15.52

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
17mm
Style:
ESPE
Bolt Hole Centres:
95mm
Technical
--- Dimensions
Shaft diameter 17mm
A 30mm
A1 18mm
B 19.1mm
d1 27.2mm
H 30.2mm
H1 10mm
H2 57mm
J 95mm
L 125mm
L1 38mm
N 11mm
N1 19mm
S 6.5mm
G M6x1
--- Load rating
Dynamic load C 9.55 kN
Static load C0 4.78 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.43 kg
