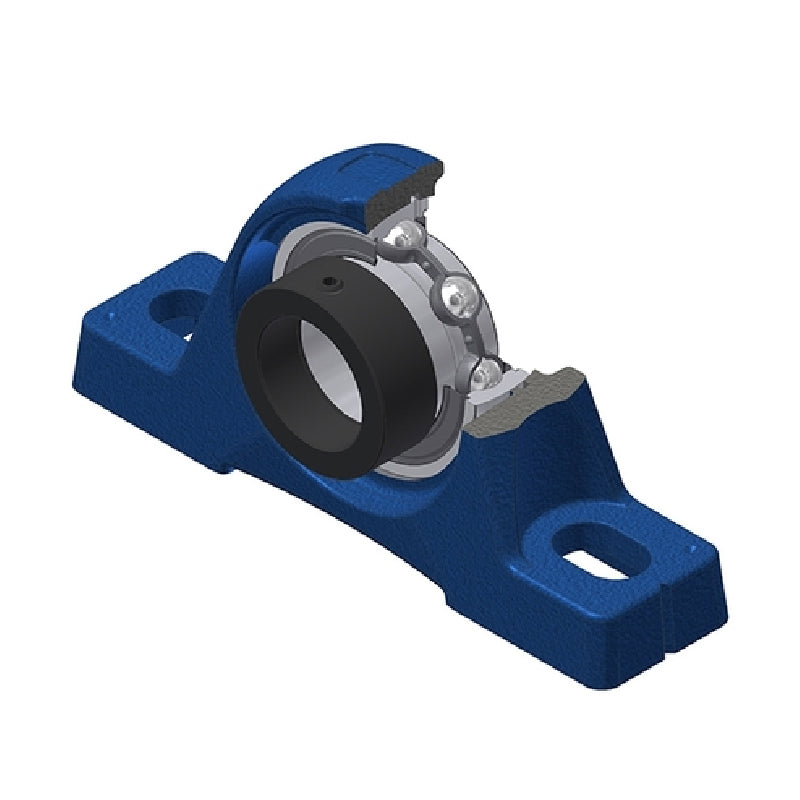

• SNR ESPE205 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 25mm Eccentric Collar Insert - Allow 2-3 Days
  • SNR
1 2

SKU: ESPE205-SNR

SNR ESPE205 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 25mm Eccentric Collar Insert - Allow 2-3 Days

SNR ESPE205 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 25mm Eccentric Collar Insert - Allow 2-3 Days
$29.88 ex VAT
$29.88 ex VAT
Sale Sold out

In stock

Price Break
3+ $20.02
4+ $18.89
9+ $18.67
19+ $18.44
49+ $18.22
99+ $17.99
499+ $16.87
999+ $16.64
1999+ $16.42
2999+ $16.19
4999+ $15.74

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
25mm
Style:
ESPE
Bolt Hole Centres:
103mm
Technical
--- Dimensions
Shaft diameter 25mm
A 36mm
A1 21mm
B 21.4mm
d1 37.4mm
H 36.5mm
H1 14.5mm
H2 70mm
J 103mm
L 130mm
L1 39mm
N 11mm
N1 19mm
S 7.5mm
G R1/8"
--- Load rating
Dynamic load C 14 kN
Static load C0 7.88 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.69 kg
