SKU: ESPE206-SNR

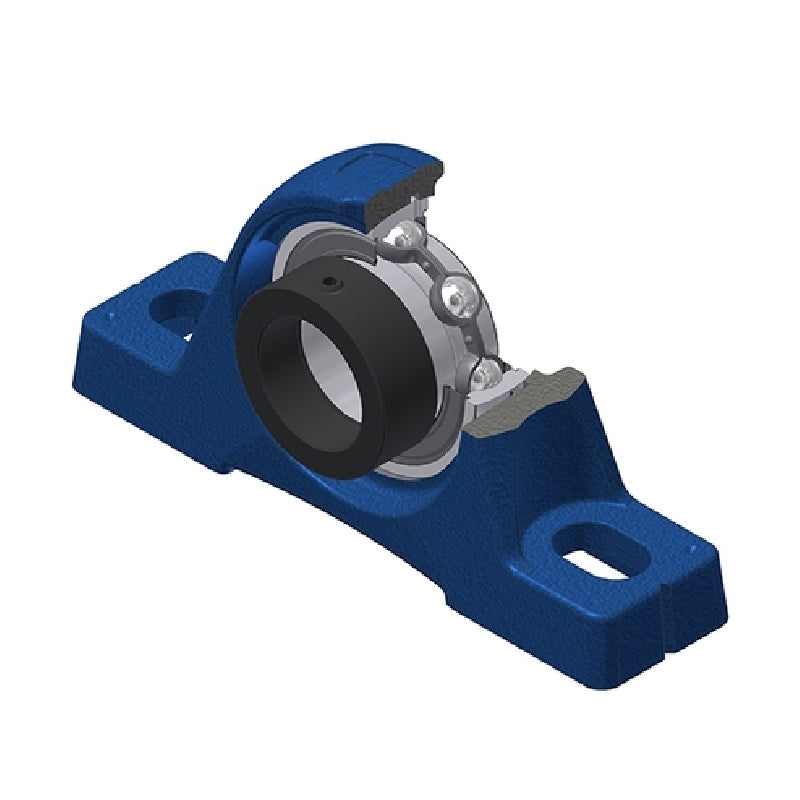

SNR ESPE206 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Eccentric Collar Insert - Allow 2-3 Days

SNR ESPE206 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Eccentric Collar Insert - Allow 2-3 Days
Regular price $47.07 ex VAT
Regular price Sale price $47.07 ex VAT
Sale Sold out

In stock

Price Break
3+ $35.07
4+ $33.65
9+ $32.94
19+ $31.88
49+ $31.17
99+ $29.40
499+ $24.79
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 30mm
A 40mm
A1 25mm
B 23.8mm
d1 44.1mm
H 42.9mm
H1 17mm
H2 82mm
J 118mm
L 158mm
L1 47mm
N 14mm
N1 22mm
S 9mm
G R1/8"
--- Load rating
Dynamic load C 19.5 kN
Static load C0 11.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.13 kg
