SKU: ESPE207-23-SNR

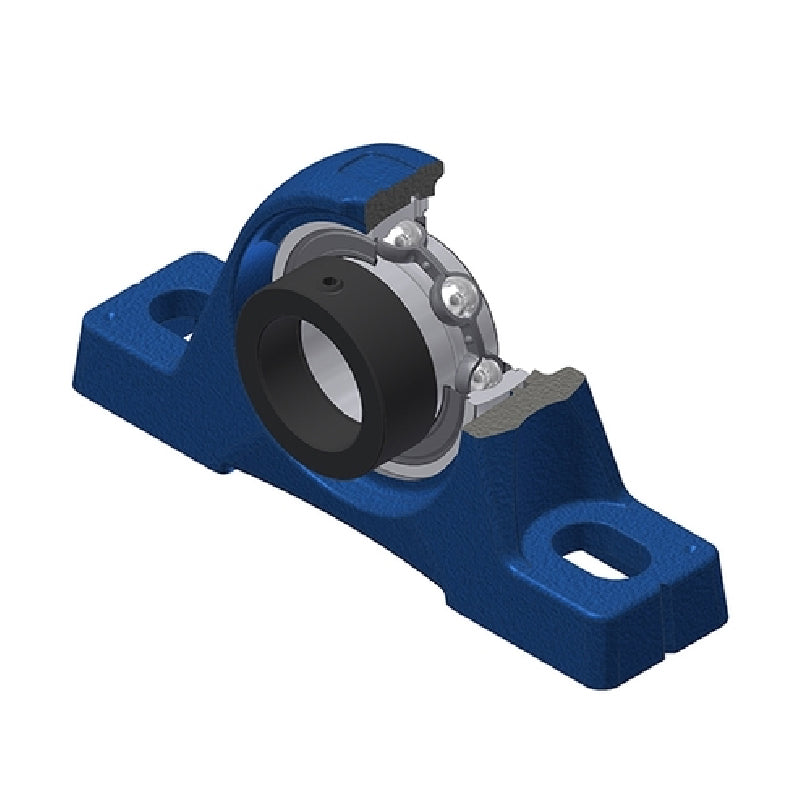

SNR ESPE207-23 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-7/16 inch Eccentric Collar Insert - Allow 2-3 Days

SNR ESPE207-23 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-7/16 inch Eccentric Collar Insert - Allow 2-3 Days
Regular price $47.10 ex VAT
Regular price Sale price $47.10 ex VAT
Sale Sold out

In stock

Price Break
3+ $35.09
4+ $33.67
9+ $32.96
19+ $31.90
49+ $31.19
99+ $29.42
499+ $24.81
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 1-7/16 inch
A 45mm
A1 27mm
B 25.4mm
d1 51.1mm
H 47.6mm
H1 19mm
H2 93mm
J 126mm
L 163mm
L1 49mm
N 14mm
N1 21mm
S 9.5mm
G R1/8"
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 8 Nm
Mass 1.58 kg
