SKU: ESPE208-SNR

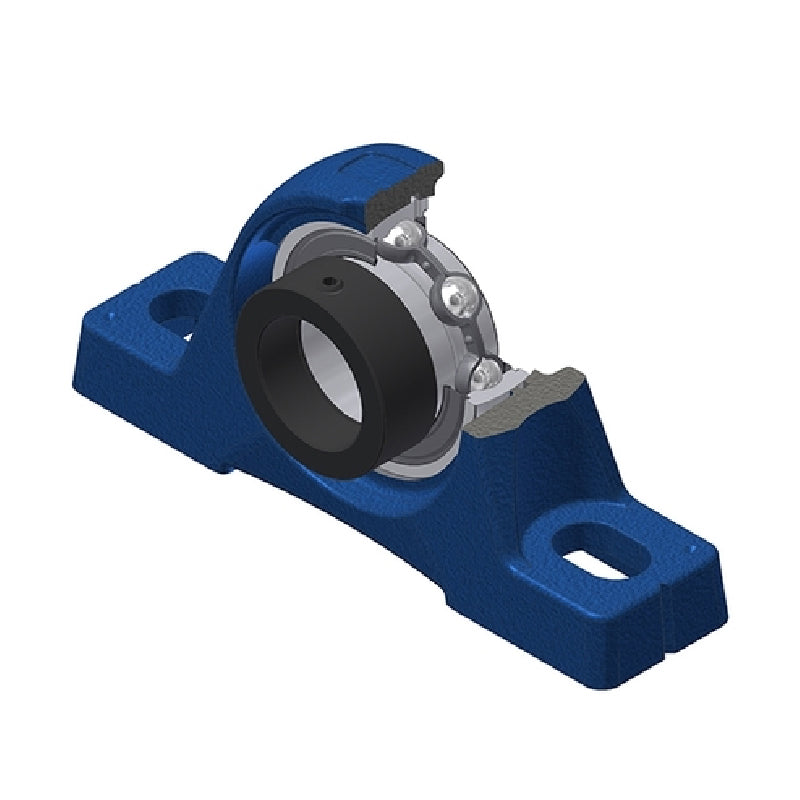

SNR ESPE208 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
SNR ESPE208 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
$45.97
ex VAT
Regular price
Sale price
$45.97
ex VAT
In stock
Price Break
3+
$30.79
4+
$29.06
9+
$28.72
19+
$28.37
49+
$28.02
99+
$27.68
499+
$25.95
999+
$25.60
1999+
$25.26
2999+
$24.91
4999+
$24.22
Quantity
Couldn't load pickup availability
Share this product
Description
Description
ESPE200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- ESPE
- Bolt Hole Centres:
- 138mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 40mm |
| A | 48mm |
| A1 | 30mm |
| B | 30.2mm |
| d1 | 58mm |
| H | 49.2mm |
| H1 | 19mm |
| H2 | 99mm |
| J | 138mm |
| L | 179mm |
| L1 | 53mm |
| N | 14mm |
| N1 | 26mm |
| S | 11mm |
| G | R1/8" |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.85 kg |
