SKU: ESPE209-SNR

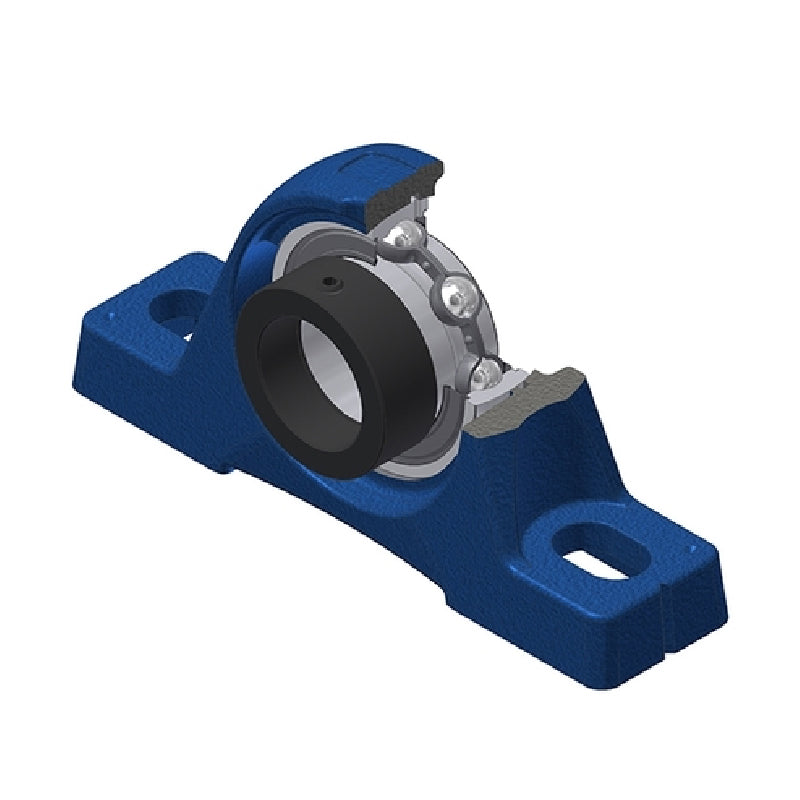

SNR ESPE209 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Eccentric Collar Insert - Allow 2-3 Days

SNR ESPE209 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Eccentric Collar Insert - Allow 2-3 Days
Regular price $53.79 ex VAT
Regular price Sale price $53.79 ex VAT
Sale Sold out

In stock

Price Break
3+ $36.03
4+ $34.01
9+ $33.60
19+ $33.20
49+ $32.79
99+ $32.39
499+ $30.36
999+ $29.96
1999+ $29.55
2999+ $29.15
4999+ $28.34
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 45mm
A 48mm
A1 32mm
B 30.2mm
d1 62mm
H 54mm
H1 21.5mm
H2 107mm
J 150mm
L 192mm
L1 54.5mm
N 14mm
N1 29mm
S 11mm
G R1/8"
--- Load rating
Dynamic load C 31.85 kN
Static load C0 20.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.19 kg
