SKU: ESPE209N-SNR

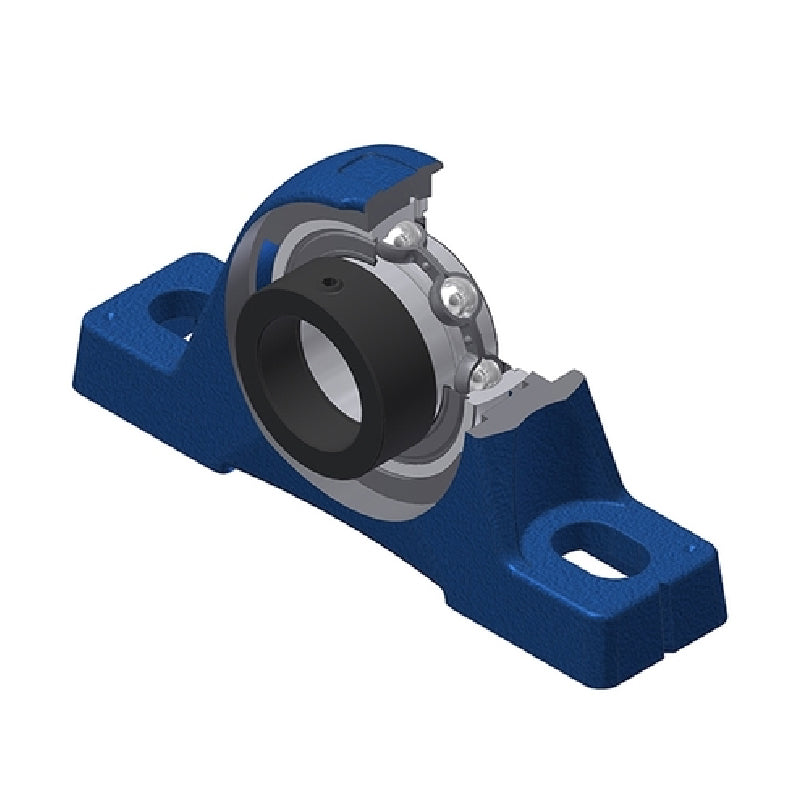

SNR ESPE209N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Eccentric Collar Insert - Allow 2-3 Days
SNR ESPE209N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
$206.05
ex VAT
Regular price
Sale price
$206.05
ex VAT
In stock
Price Break
3+
$153.50
4+
$147.30
9+
$144.20
19+
$139.55
49+
$136.44
99+
$128.69
499+
$108.54
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
ESPE200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- ESPE
- Bolt Hole Centres:
- 150mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 45mm |
| A | 48mm |
| A1 | 32mm |
| B | 30.2mm |
| d1 | 62mm |
| H | 54mm |
| H1 | 21.5mm |
| H2 | 107mm |
| J | 150mm |
| L | 192mm |
| L1 | 54.5mm |
| N | 14mm |
| N1 | 29mm |
| S | 11mm |
| G | R1/8" |
| --- | Load rating |
| Dynamic load C | 31.85 kN |
| Static load C0 | 20.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 2.09 kg |
