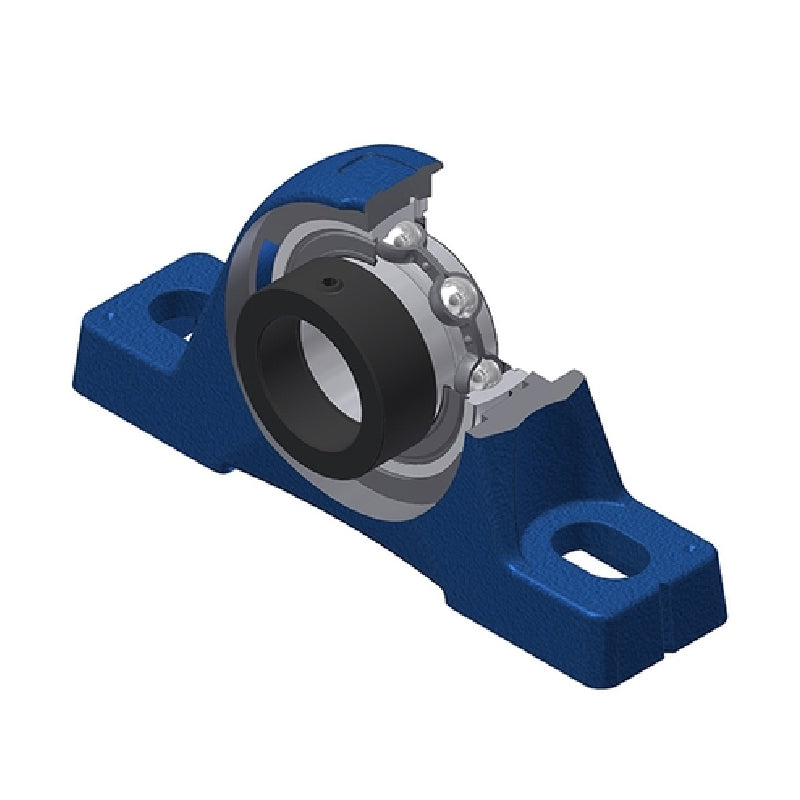

• SNR ESPE210N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
  • SNR
1 2

SKU: ESPE210N-SNR

SNR ESPE210N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days

SNR ESPE210N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
$69.16 ex VAT
$69.16 ex VAT
Sale Sold out

In stock

Price Break
3+ $46.33
4+ $43.72
9+ $43.20
19+ $42.68
49+ $42.16
99+ $41.64
499+ $39.04
999+ $38.52
1999+ $38.00
2999+ $37.48
4999+ $36.44

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
50mm
Style:
ESPE
Bolt Hole Centres:
158mm
Technical
--- Dimensions
Shaft diameter 50mm
A 54mm
A1 34mm
B 30.2mm
d1 67.2mm
H 57.2mm
H1 21.5mm
H2 115mm
J 158mm
L 200mm
L1 61mm
N 18mm
N1 23mm
S 11mm
G R1/8"
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.6 kg
