SKU: ESPE211N-SNR

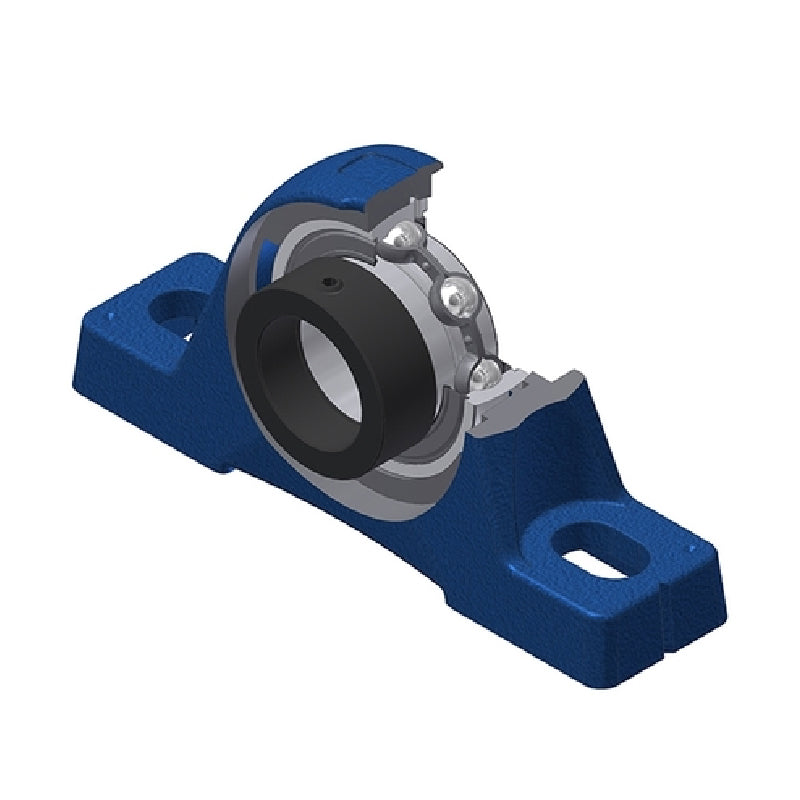

SNR ESPE211N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days

SNR ESPE211N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days
Regular price $235.53 ex VAT
Regular price Sale price $235.53 ex VAT
Sale Sold out

In stock

Price Break
3+ $175.47
4+ $168.38
9+ $164.83
19+ $159.52
49+ $155.97
99+ $147.11
499+ $124.07
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 55mm
A 60mm
A1 35mm
B 32.5mm
d1 74.5mm
H 63.5mm
H1 22.5mm
H2 124.5mm
J 176mm
L 222mm
L1 68mm
N 18mm
N1 30mm
S 12mm
G R1/8"
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 3.17 kg
